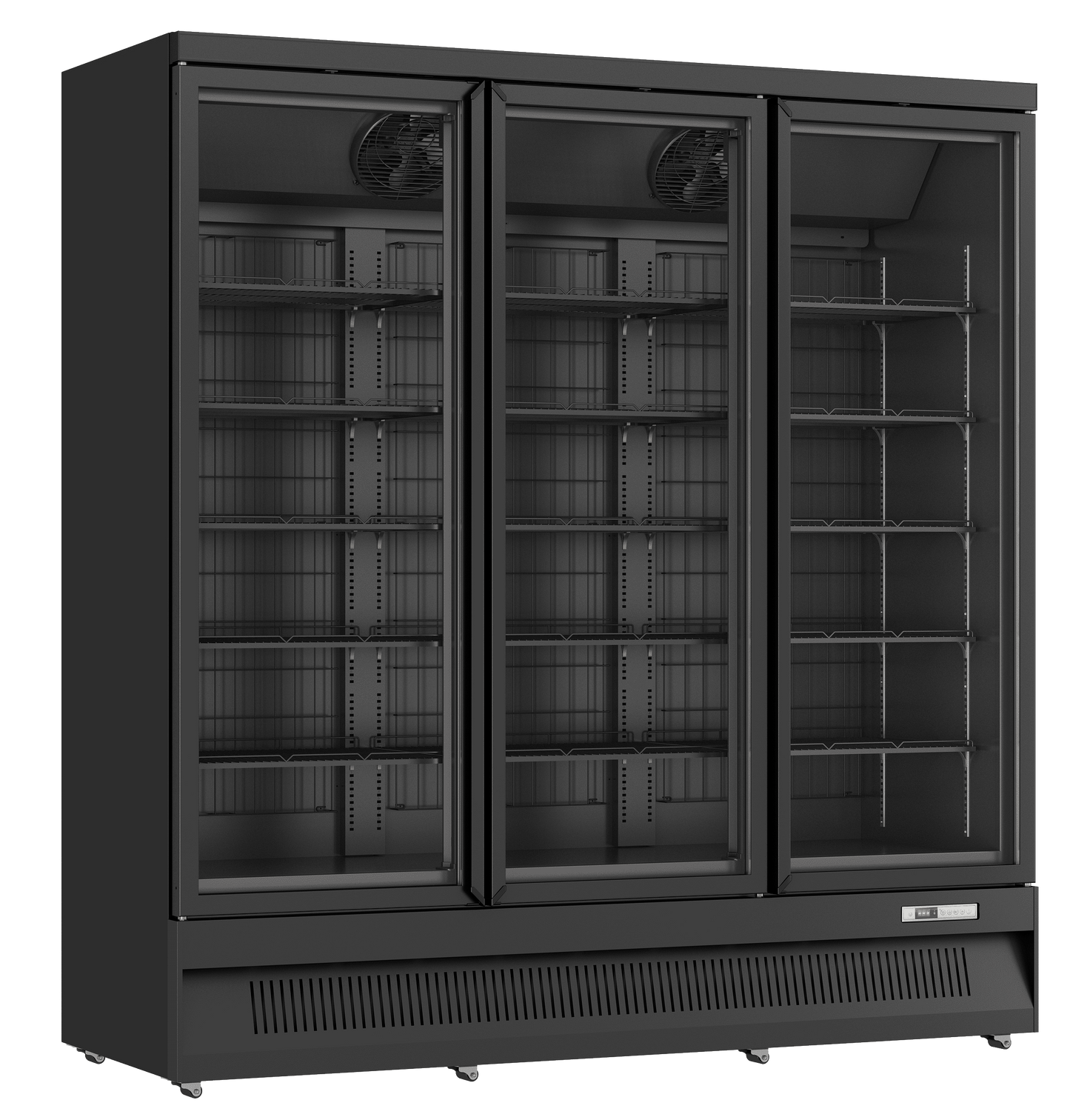

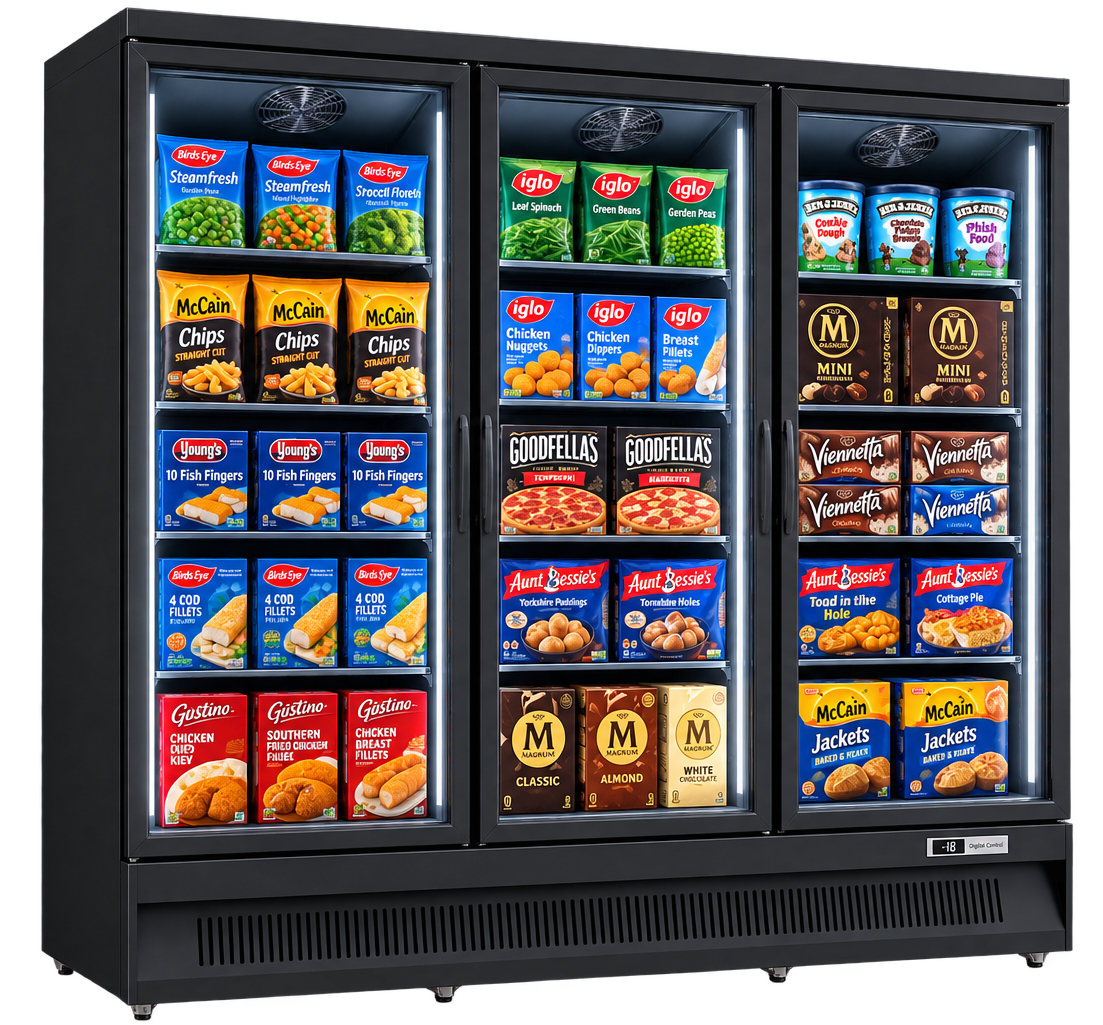

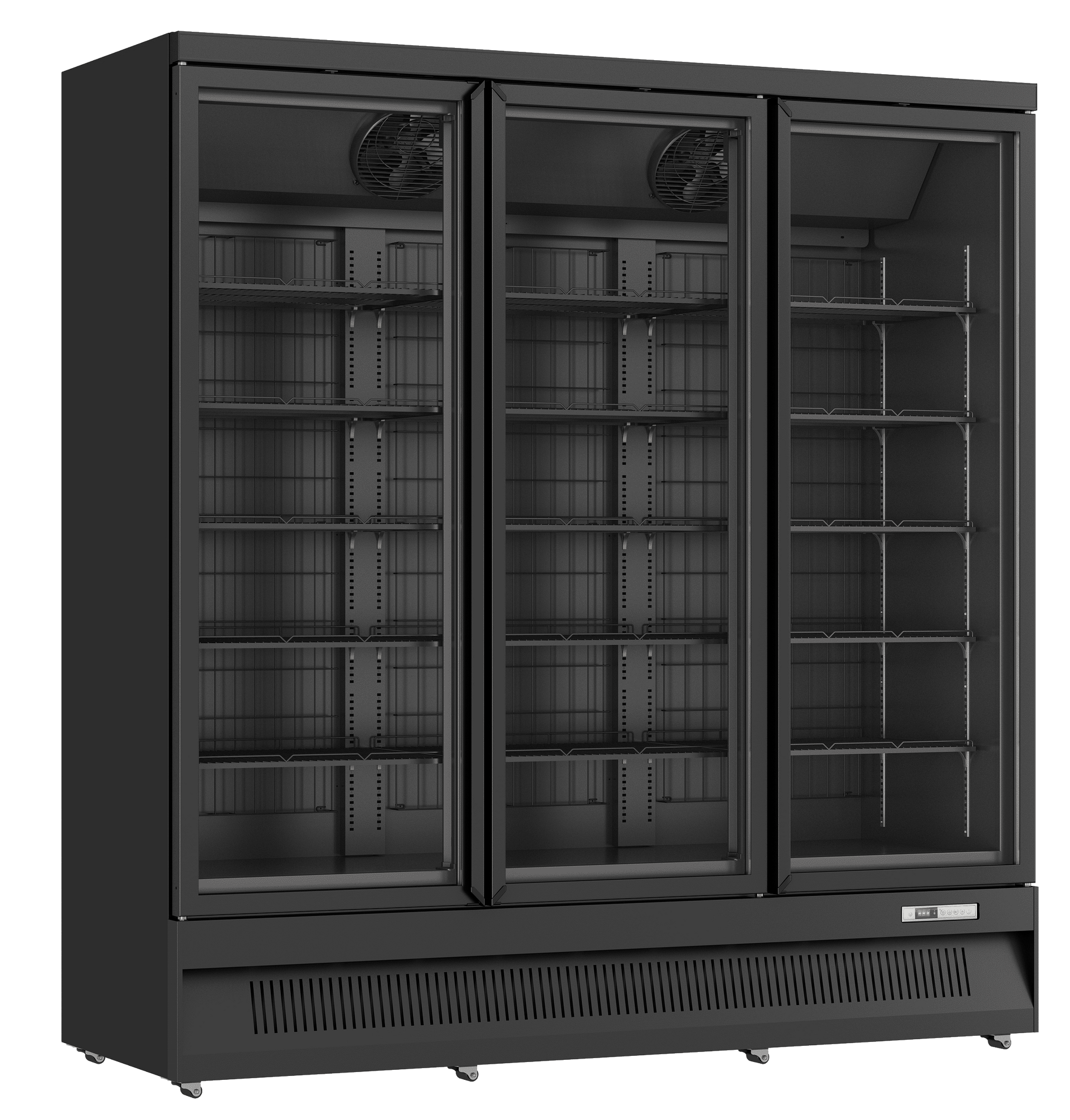

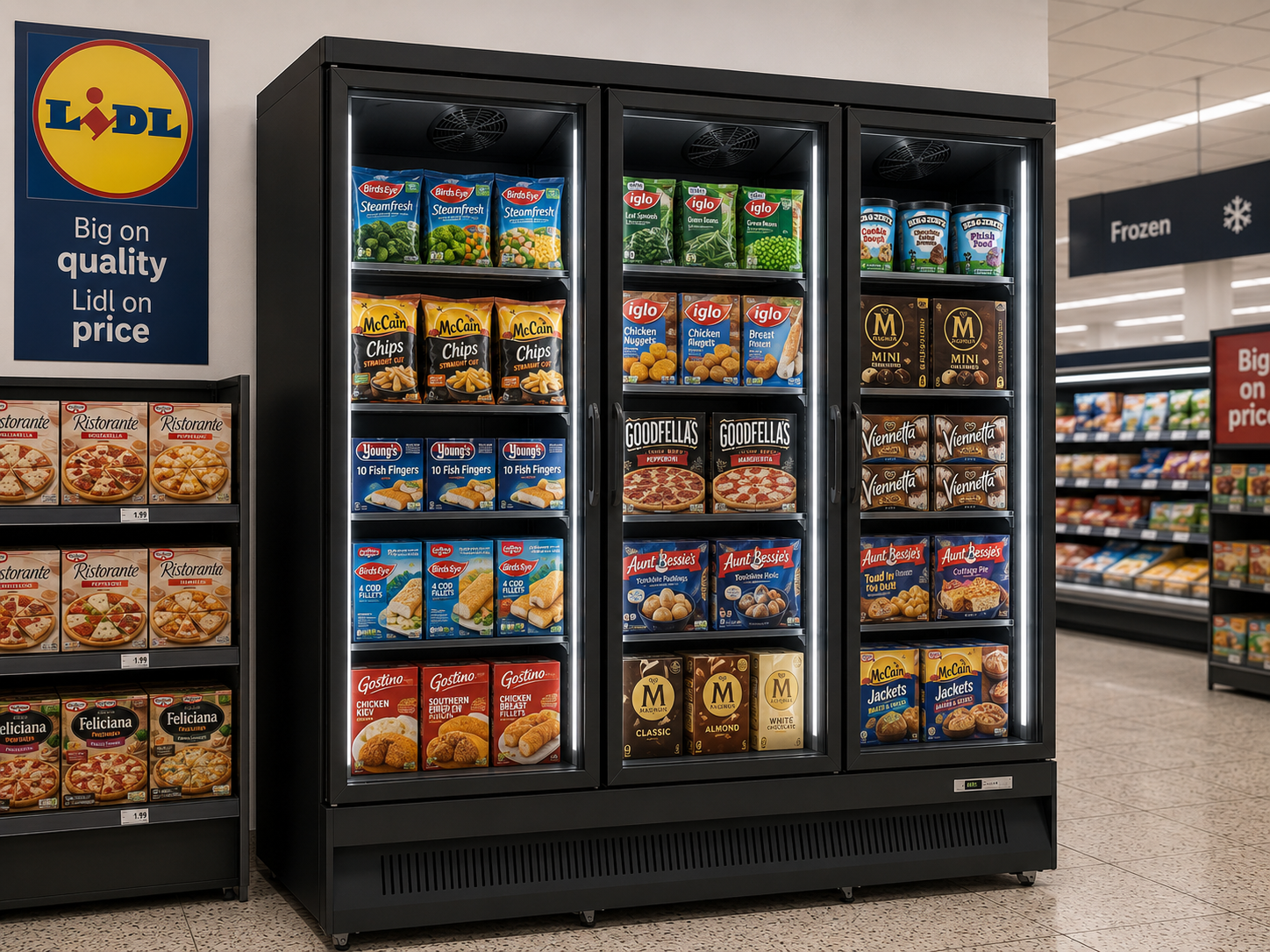

Three Glass Door Upright Display Freezer SKU AHE1880F

Dimensions & Capacity

Product Dimensions: W:1880 × D: 760 × H: 2003 mm

Internal Dimensions: W: 1760 ×D: 580 × H:1538 mm

Gross Volume: 1563 L

Net Volume: 1430 L

330ml Can Capacity: 2,100 cans

550ml Bottle Capacity: 1,050 bottles

Shelves: 15 black metal shelves / 16mm wire spacing

Shelf Loading Capacity: 37.52 kg per shelf / 42.21 kg for larger shelves

Display Area: 2.09 m²

Electrical & General

Protection Against Electric Shock: Class I

Climatic Class: 3

Rated Voltage / Frequency: 220V / 50Hz

Power Plug / Cord Length: UK Plug / 2m

Door & Cabinet

Door Frame: Aluminium frame with plastic core / Al + PVC / Black / Extruded

Number of Doors / Opening Style: 3 / Rotating

Door Glass: 25mm triple-layer glass / 4mm + 4mm + 3mm / 2 D-tempered / Electrical heater

Door Opening Direction: Side to side / From left

Automatic Door Closing: Yes

Door Stop: No

Door Handle: Integrated with door frame / Aluminium / Black / Extruded

Front Grill: Vertical bar hole type / Metal / Black / Painted

Cabinet Interior & Exterior: Steel / Black / Pre-coated

Lighting & Display

Price Bar: 38mm high without cover / Black

Refrigeration & Cooling

Foaming Agent: Cyclopentane

Refrigerant: R290 / 90g × 2

Temperature Range: -18°C to -22°C

Cooling Method: Frost Free

Condenser Fans: 2 normal fans / 29W each / 1300 RPM

Cooling Switch: Yes

Defrost Water Treatment: Self evaporation

Compressor: Normal compressor

Noise Level: 64 dB

Controls & Energy

Controller Position: Front grill

Energy Standard: EU 2019/2018 / EU 2019/2024

Energy Class: D

Daily Energy Consumption: 25.85 kWh / 24h

Input Power: 1580W

Rated Current: 10.4A

Defrost Power: 2198W

Packaging & Shipping

Package Dimensions: 1920 × 775 × 2090 mm

Net Weight: 283 kg

Gross Weight: 311 kg

Mobility

Castors: 4 × 1-inch castors / 40mm height
