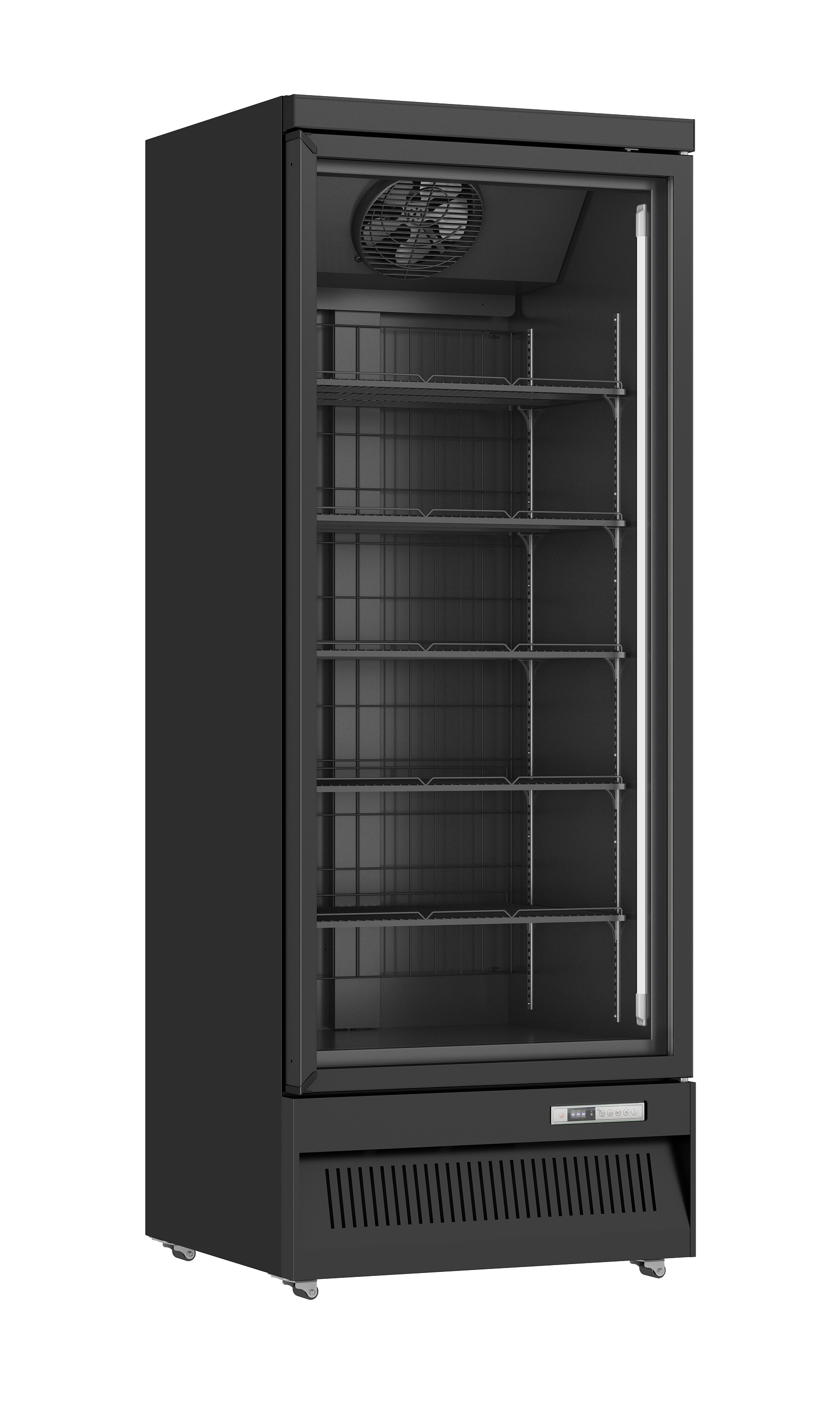

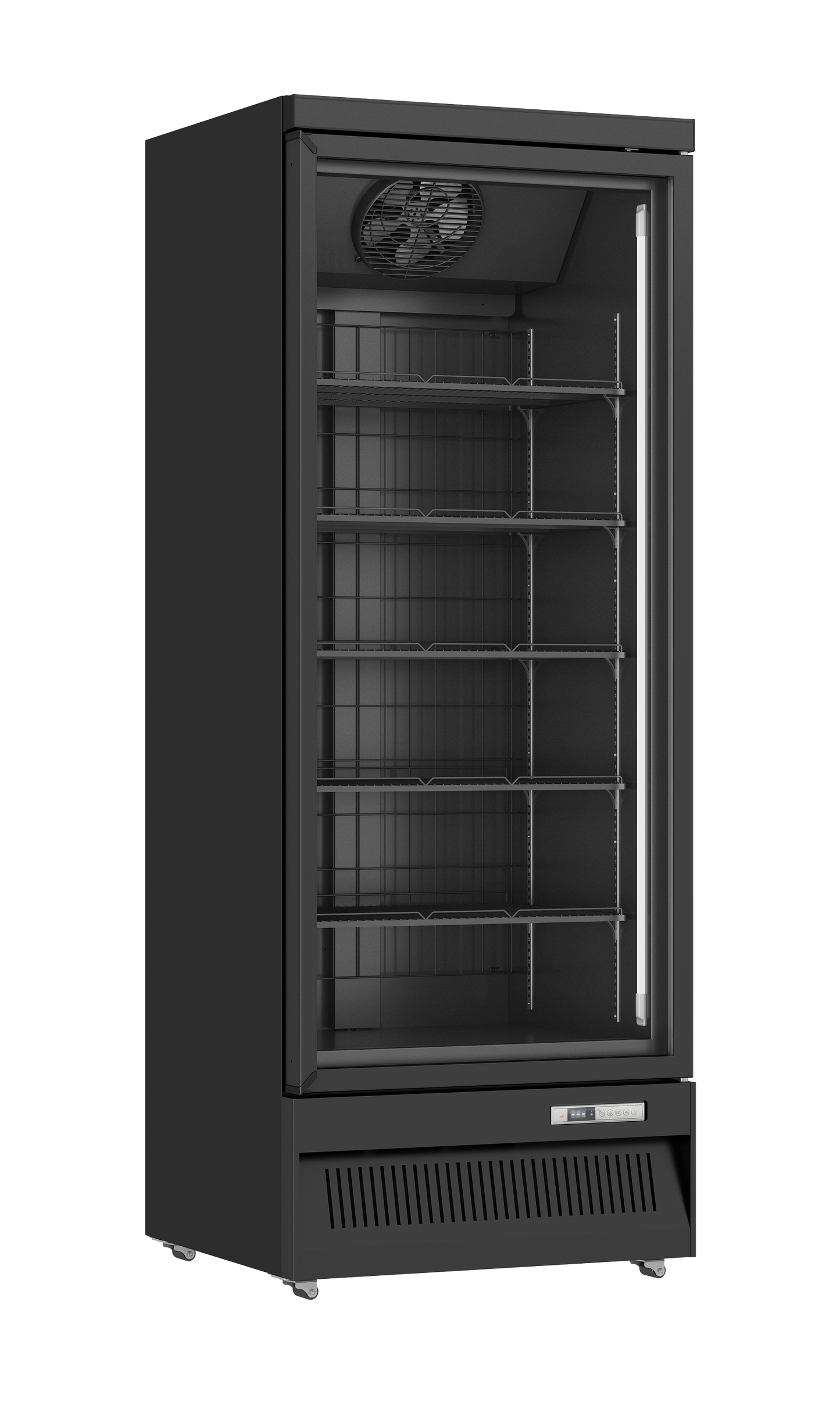

Single Glass Door Upright Display Freezer SKU AHE750F

Dimensions & Capacity

Product Dimensions: W: 750 × D: 760 × H: 2003 mm

Internal Dimensions: W: 630 × D: 580 × H: 1538 mm

Gross Volume: 560 L

Net Volume: 520 L

330ml Can Capacity: 1,344 cans

550ml Bottle Capacity: 672 bottles

Shelves: 5 black wire shelves / 16mm wire spacing

Shelf Loading Capacity: 42.21 kg per shelf

Display Area: 0.84 m²

Electrical & General

Climatic Class: 3

Rated Voltage / Frequency: 220V / 50Hz

Power Plug / Cord Length: UK Plug / 2m

Door & Cabinet

Door Lintel: Square / Aluminium / Black

Number of Doors / Opening Style: 1 / Rotating

Door Glass: 25mm triple-layer glass / 4mm + 4mm + 3mm / 2 D-tempered / Electrical heater

Door Opening Direction: From left

Automatic Door Closing: Yes

Door Stop: No

Front Grill: Vertical bar hole type / Metal / Black / Painted

Cabinet Interior Exterior: Steel / Black / Pre-coated

Lighting & Display

Canopy Light: P type / 10.5W × 2 / 9000-10000K

Price Bar: 38mm high without cover / Black

Refrigeration & Cooling

Refrigerant: R290 / 85g

Temperature Range: -18°C to -22°C

Cooling Method: Frost Free

Condenser Fan: 1 normal fan / 29W / 1300 RPM

Cooling Switch: Yes

Airflow Onto Glass: No

Defrost Water Treatment: Self evaporation

Compressor: Normal compressor

Noise Level: 62 dB

Controls & Energy

Temperature Control: Electronic thermostat

Controller Position: Front grill

Energy Standard: EU 2019/2018 / EU 2019/2024

Energy Class: D

Daily Energy Consumption: 10.18 kWh / 24h

Input Power: 650W

Rated Current: 3.7A

Packaging & Shipping

Package Dimensions: 790 × 780 × 2090 mm

Net Weight: 132 kg

Gross Weight: 140 kg

Mobility

Castors: 4 × 1-inch castors / 40mm height
