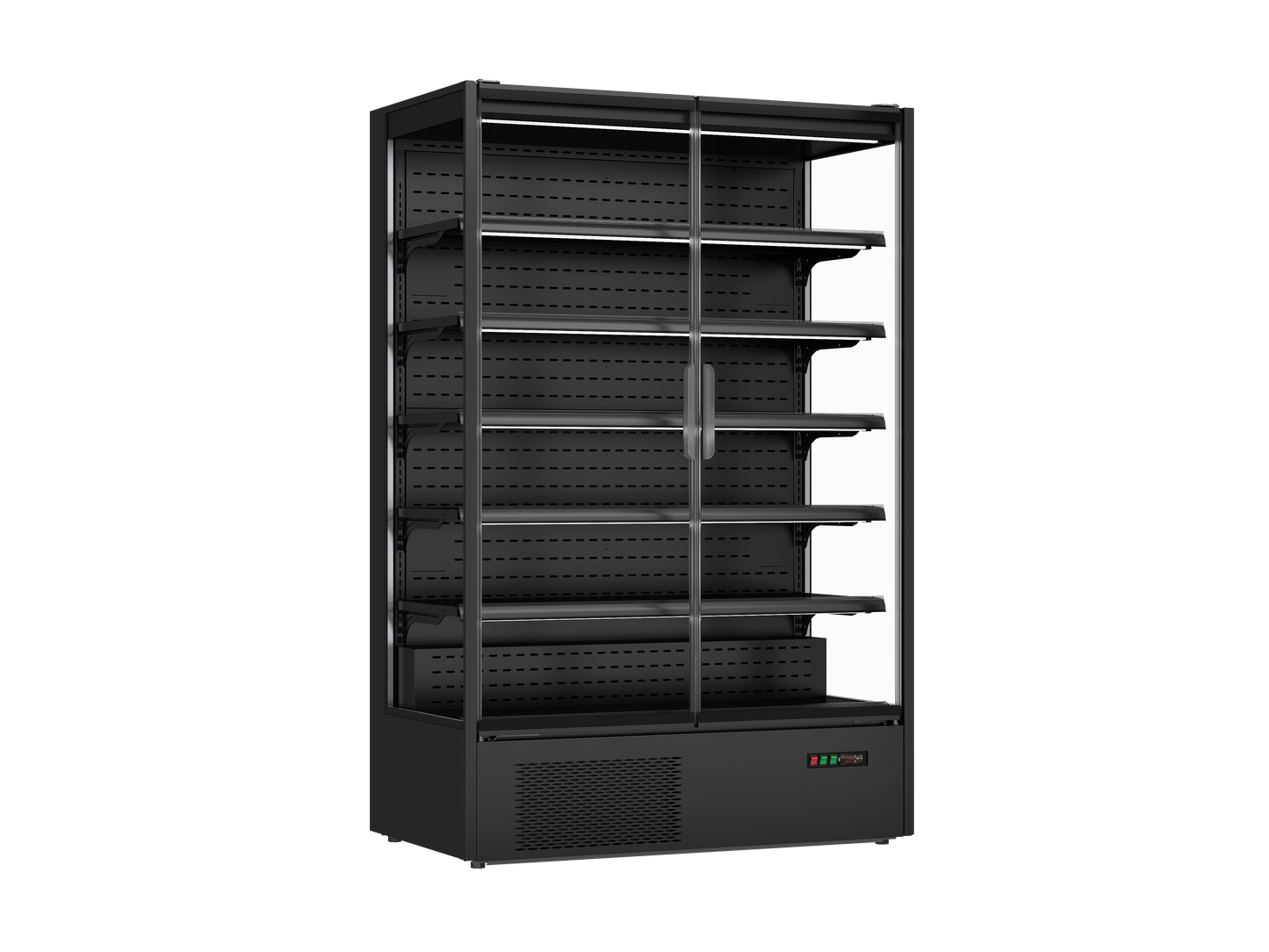

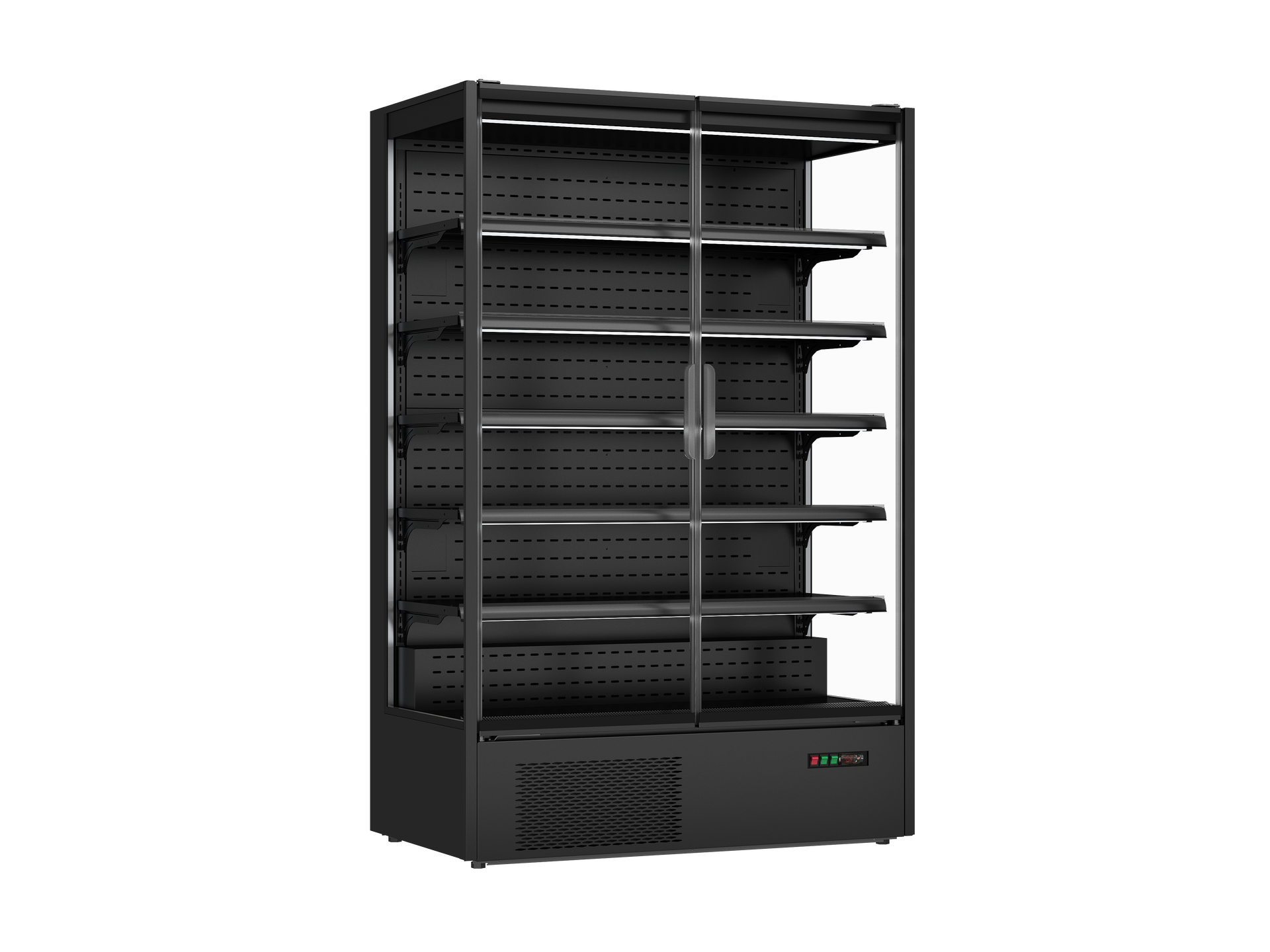

Multideck With 2 Doors AHE1250MDG

Specifications

Climatic Class: 3

Rated Voltage / Frequency: 220 V / 50 Hz

Power Plug / Cord Length: UK plug / 2 m

Door and Cabinet

Door Frame: Black ABS plastic top and bottom frame with an injection-moulded finish

Number of Doors / Opening Style: 2 rotating doors

Door Glass: 20 mm, double-layer 4 mm glass with D-tempered and S-Low-E treatment

Door Opening Direction: Side to side

Self-Closing Doors: Yes

Door Lock: No

Bottom Cabinet Exterior: Black painted metal

Bottom Cabinet Interior: Stainless steel with natural metal finish

Back Panel: Galvanised steel with natural metal finish

Top Panel: Galvanised steel with natural metal finish

Cabinet Interior: Glass and painted metal back in transparent and black finishes

Air Deflector: 0.5 mm galvanised steel, painted black

Base Shelf: 0.7 mm galvanised steel, painted black

Frame: 2.0 mm galvanised steel, painted black

Air Curtain Inlet: Mirror-finish stainless steel

Shelf Support Arms: Galvanised steel sheet, painted black

Metal Shelves: Galvanised steel sheet, painted black

Price Strip: 35 mm price bar without cover

Dimensions and Capacity

Product Dimensions : W: 1310 × D: 740 × H: 2010 mm, including side wall

Internal Dimensions : W: 1250 × D: 450 × H: 1540 mm

Gross Volume: 1292 L

Net Volume: 764 L

Shelves: 5 metal shelves and 2 bottom covers

Shelf Loading Capacity: 65 kg per shelf

Display Area: 3.14 m²

Lighting and Insulation

Canopy Lighting: Convex LED type, 6 × 8 W, 6500 K

Price Bar: 38 mm high, black, without cover

Refrigeration and Performance

Refrigerant / Charge: R290 / 149 g

Cabinet Temperature Range: −1 to +5°C

Cooling System: Frost-free

Condenser: 1 metal wire-and-tube condenser

Condenser Fans: 2 EC fans, 15 W each, 1500 RPM

Evaporator: 1 aluminium evaporator

Evaporator Fans: 2 EC fans, 15 W each, 1500 RPM

Cooling Switch: Yes

Airflow on Glass: No

Defrost Water Disposal: Self-evaporation

Compressor: Normal compressor

Noise Level: 60 dB

Controller Position: Front grille

Energy Standards: EU 2019/2018 and EU 2019/2024

Energy Class: B / A

Daily Energy Consumption: 5.870 / 4.6 kWh per 24 hours

Input Power: 550 W

Rated Current: 3.2 A

Defrost Type: Compressor stops during defrost

Packaging and Weight

Package Dimensions (W × D × H): 1350 × 767 × 2150 mm

Net Weight: 260 kg

Gross Weight: 300 kg

Feet / Castors: Feet or four 2-inch castors, 74 mm high
