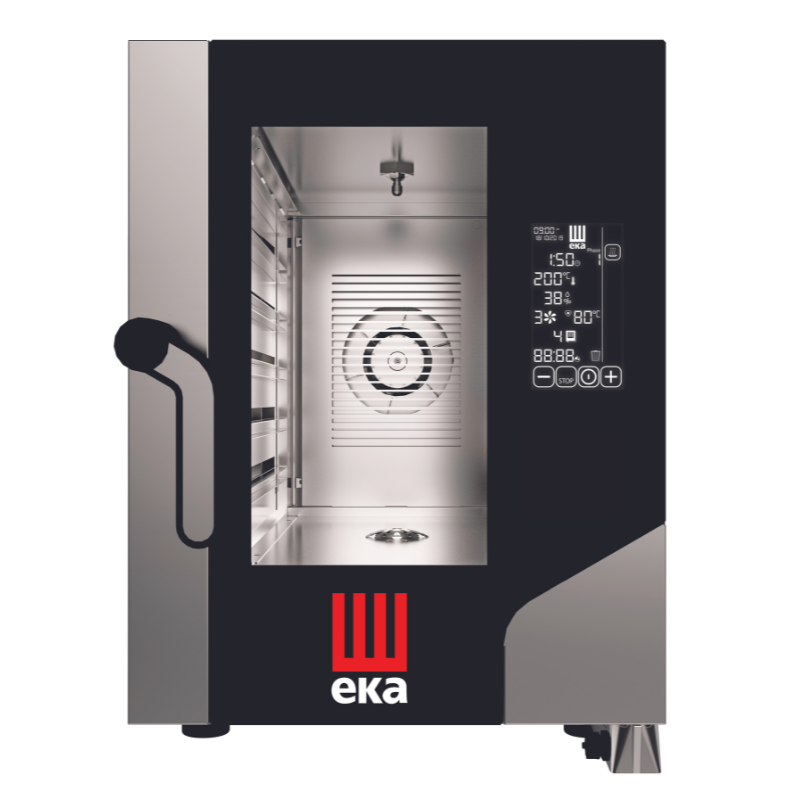

EKA - MKF 611 C BM - Electric COMPACT combi oven 6 trays 1/1 GN with a digital touch panel with BLACK MASK technology

Dimensional features

Dimensions (WxDxH mm) 500 x 930 x 700

Weight (kg) 70,8

Distance between rack rails (mm) 68

Electrical features

Power supply (kW) 7,8

Frequency (Hz) 50/60

Voltage (V) AC 380/400 3N

N° motors 1 bidirectional

Protection against water IPX4

Functional features

Power Electricity

Capacity 6 trays/grids 1/1 GN

Type of cooking: Semistatic + ventilated

Steam Direct steam controlled by touch screen (10 levels )

Cooking chamber AISI 304 stainless steel

Temperature 30 - 270 °C

Temperature control Digital probe thermometer

Control panel Black mask electronic control

N° programs 100

Programmable Cooking Steps 10

Pre-heating temperature 180 °C

Pre-heating function Programmable

Door Right side opening | Ventilated | Inspectionable glass

Modularity Yes

Feet Adjustable

Optionals

Condensation hood MKKC 610 C

Kit for overlapping ovens MKS 11 C | MKS 611 C | MKSST 611 C

Tables MKTS 11 C | MKT 11 D C

Other accessories Available in the dedicated section

Equipment

Cardboard box dimensions with pallet (WxDxH mm) 570 x 980 x 870 mm

Lateral supports 1 right + 1 left

Cable Three-phase+neutral [5G 2,5]-L=1600 mm

USB port

Core probe with support cod. EKSCS

Automatic washing system integrated

Condensate collection bowl, with the drain on the door

Hinge with door locking for openings adjusted at 60°, 90°, 120°, 180°

Plus

Patented fan guard system AirflowlogicTM

Patented system for direct steam HumilogicTM

Available on request at the order:

• Voltage (V): AC 220/230 3 PH
• Left side opening door

Humidity management software

Programmable oven start

N ° 40 recipes stored

HACCP system

Adjustable door hinges
