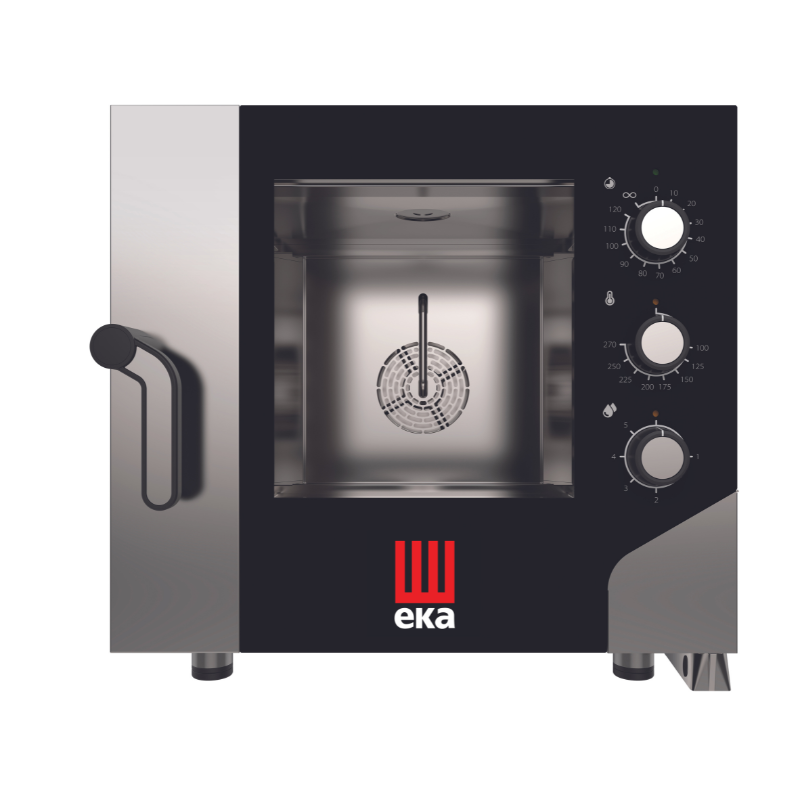

EKA - MKF 511 S - Electric combi oven 5 trays 1/1 GN with electromechanic panel

Dimensional features

Dimensions (WxDxH mm) 730 x 855 x 700
Weight (kg) 78,4
Distance between rack rails (mm) 68

Electrical features

Power supply (kW) 7,8
Frequency (Hz) 50 (60 on demand)
Voltage (V) AC 380/400 3N
N° motors 1 bidirectional
Protection against water IPX4

Functional features

Power Electricity
Capacity 5 trays/grids 1/1 GN
Type of cooking Ventilated
Steam Direct steam controlled by knob (5 levels )
Cooking chamber AISI 304 stainless steel
Temperature 100 - 270 °C
Temperature control Thermostat
Control panel Electromechanic - right side
Door: Right side opening | Ventilated | Inspectionable glass
Modularity Yes
Feet Adjustable

Optionals

Condensation hood MKKC 5 S
Kit for overlapping ovens MKS 11 | MKSST 511
Tables MKTS 11 | MKT 11 D
Other accessories Available in the dedicated section

Equipment

Cardboard box dimensions with pallet (WxDxH mm) 790 x 905 x 865 mm
Lateral supports 1 right + 1 left
Cable Two-phase+neutral [5G 2,5]-L=1600 mm
Manual washing predisposition
Condensate collection bowl with a drain on the door
Hinge with door locking for openings adjusted at 60°, 90°, 120°, 180°

Plus

Available on request at the order:

• Voltage (V): AC 220/230 3 PH
• Voltage (V): AC 220/230
• Left side opening door

Adjustable door hinges
