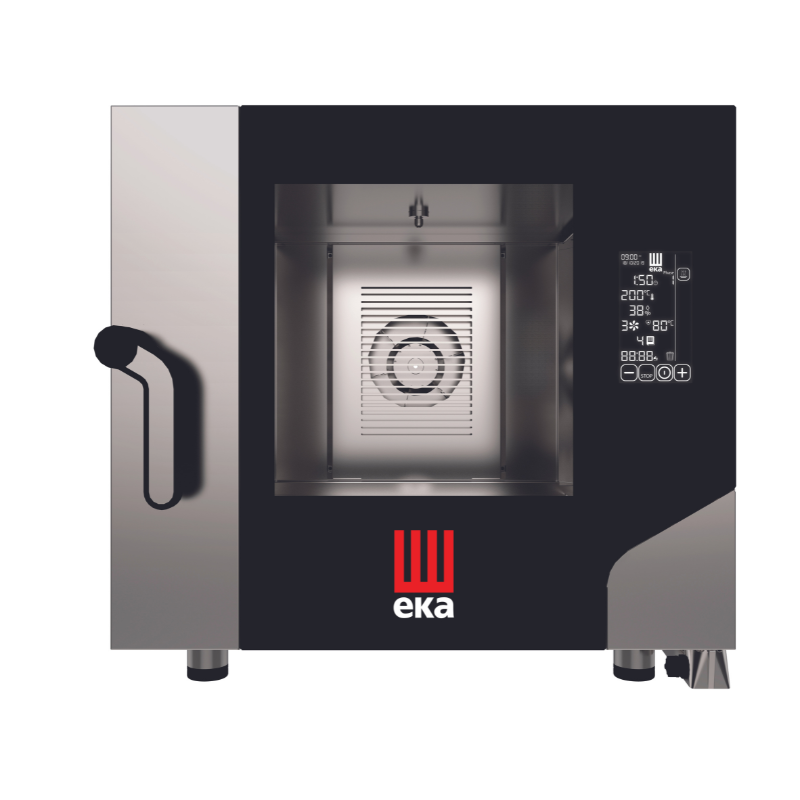

EKA - MKF 511 BM - Electric combi oven 5 trays 1/1 GN with a digital touch panel with BLACK MASK technology

Dimensional features

Dimensions (WxDxH mm) 730 x 849 x 700

Weight (kg) 78,4

Distance between rack rails (mm) 68

Electrical features

Power supply (kW) 7,8

Frequency (Hz) 50/60

Voltage (V) AC 380/400 3N

N° motors 1 bidirectional

Protection against water IPX4

Functional features

Power Electricity

Capacity 5 trays/grids 1/1 GN

Type of cooking: Semistatic + ventilated

Steam Direct steam controlled by touch screen (10 levels )

Cooking chamber AISI 304 stainless steel

Temperature 30 - 270 °C

Temperature control Digital probe thermometer

Control panel Black mask electronic control

N° programs 100

Programmable Cooking Steps 10

Pre-heating temperature 180 °C

Pre-heating function Programmable

Door: Right side opening | Ventilated | Inspectionable glass

Modularity Yes

Feet Adjustable

Optionals

Condensation hood MKKC 5

Kit for overlapping ovens MKS 11 | MKSST 511

Tables MKTS 11 | MKT 11 D

Holding cabinet MKM 1211

Other accessories Available in the dedicated section

Equipment

Cardboard box dimensions with pallet (WxDxH mm) 790 x 905 x 865 mm

Lateral supports 1 right + 1 left

Cable Three-phase+neutral [5G 2,5]-L=1600 mm

USB port

Core probe predisposition

Automatic washing system predisposition

Condensate collection bowl, with the drain on the door

Hinge with door locking for openings adjusted at 60°, 90°, 120°, 180°

Plus

Patented fan guard system AirflowlogicTM

Patented system for direct steam HumilogicTM

Available on request at the order:

• Voltage (V): AC 220/230 3 PH
• Voltage (V): AC 220/230
• Left side opening door

Humidity management software

Programmable oven start

N ° 40 recipes stored

HACCP system

Adjustable door hinges
