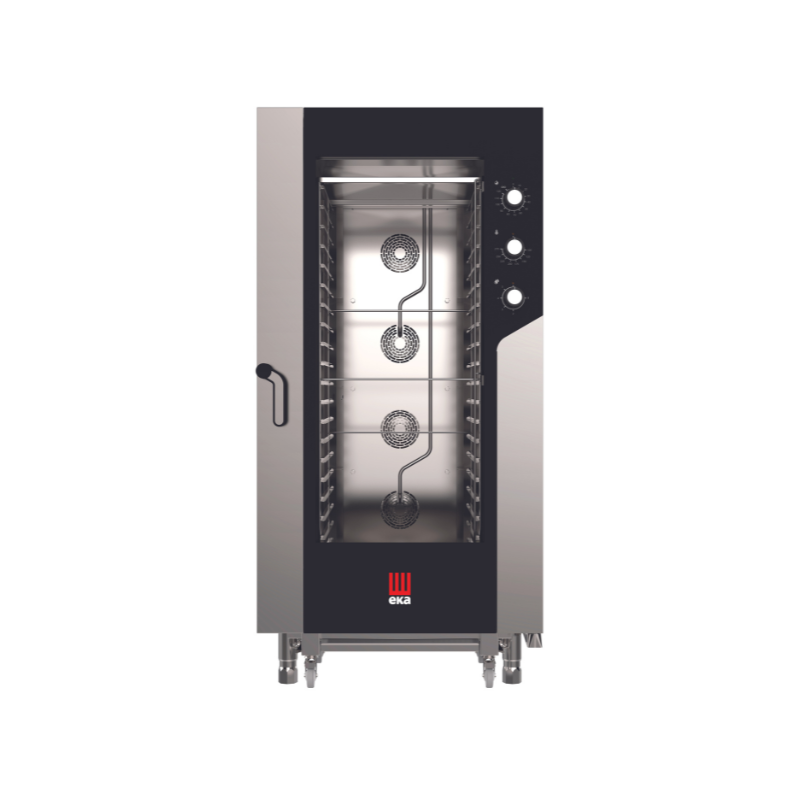

EKA - MKF 2011 S - Electric combi oven 20 trays 1/1 GN with electromechanic panel

Dimensional features

Dimensions (WxDxH mm) 930 x 1041 x 1900

Weight (kg) 247,2

Distance between rack rails (mm) 66

Electrical features

Power supply (kW) 31

Frequency (Hz) 50 (60 on demand)

Voltage (V) AC 380/400 3N

N° motors 4 bidirectional

Protection against water IPX4

Functional features

Power Electricity

Capacity 20 trays/grids 1/1 GN

Type of cooking Ventilated

Steam Direct steam controlled by knob (5 levels)

Cooking chamber AISI 304 stainless steel

Temperature 100 - 270 °C

Temperature control Thermostat

Control panel Electromechanic - right side

Door: Right side opening | Ventilated | Inspectionable glass

Feet Adjustable

Optionals

Condensation hood MKKC 1620 S

Trolleys EKCR 20 TC

Other accessories Available in the dedicated section

Equipment

Cardboard box dimensions with pallet (WxDxH mm) 1146 x 1260 x 2090 mm

Manual washing predisposition

Hinge with door locking for openings adjusted at 60°, 90°, 120°, 180°

Trolley with removable handle and braked wheels cod. EKCR 20 TC

Plus

Available on request at the order:

• Voltage (V): AC 220/230 3 PH
• Left side opening door

Adjustable door hinges
