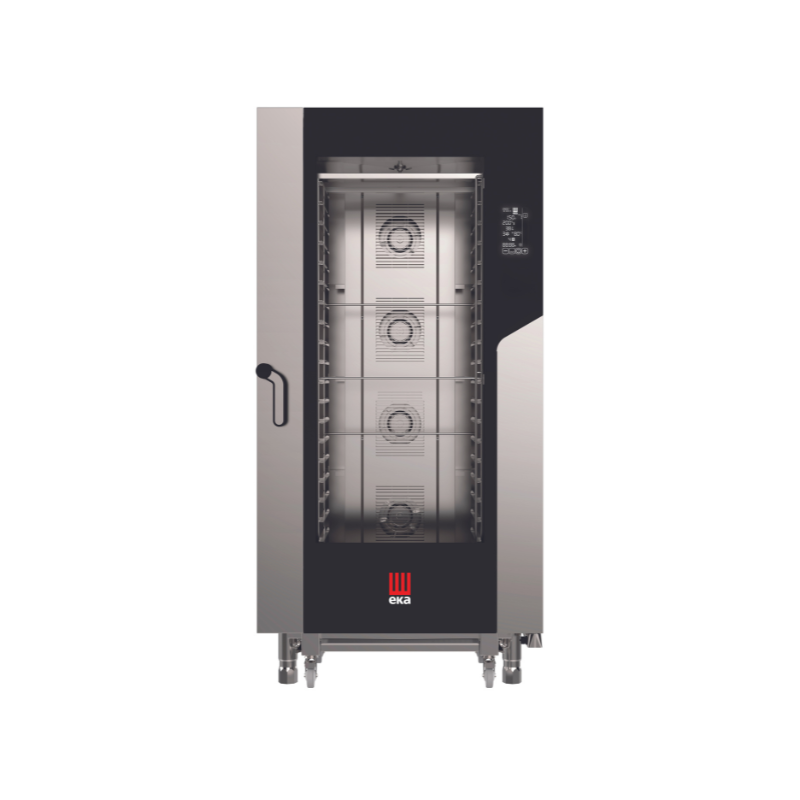

EKA - MKF 2011 BM - Electric combi oven 20 trays 1/1 GN with digital touch panel with BLACK MASK technology

Dimensional features

Dimensions (WxDxH mm) 930 x 1035 x 1900

Weight (kg) 247,2

Distance between rack rails (mm) 66

Electrical features

Power supply (kW) 31

Frequency (Hz) 50/60

Voltage (V) AC 380/400 3N

N° motors 4 bidirectional

Protection against water IPX4

Functional features

Power Electricity

Capacity 20 trays/grids 1/1 GN

Type of cooking Semistatic + ventilated

Steam Direct steam controlled by touch screen (10 levels )

Cooking chamber AISI 304 stainless steel

Temperature 30 - 270 °C

Temperature control 2 Digital probe thermometers

Control panel Black mask electronic control

N° programs 100

Programmable cooking steps 10

Pre-heating temperature 180 °C

Pre-heating function Programmable

Door Right side opening | Ventilated | Inspectionable glass

Feet Adjustable

Optionals

Condensation hood MKKC 1620

Trolleys EKCR 20 TC

Other accessories Available in the dedicated section

Equipment

Cardboard box dimensions with pallet (WxDxH mm) 1146 x 1260 x 2090 mm

USB port

Core probe predisposition

Automatic washing system predisposition

Hinge with door locking for openings adjusted at 60°, 90°, 120°, 180°

Trolley with removable handle and braked wheels cod. EKCR 20 TC

Plus

Patented fan guard system AirflowlogicTM

Patented system for direct steam HumilogicTM

Available on request at the order:

• Voltage (V): AC 220/230 3 PH
• Left side opening door

Humidity management software

Programmable oven start

N ° 40 recipes stored

HACCP system

Adjustable door hinges
