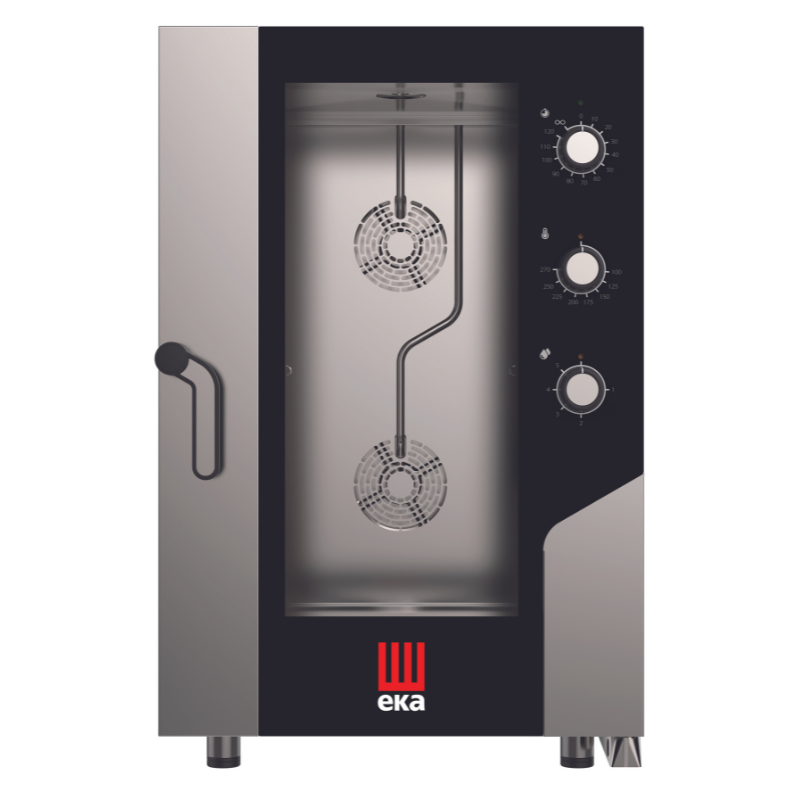

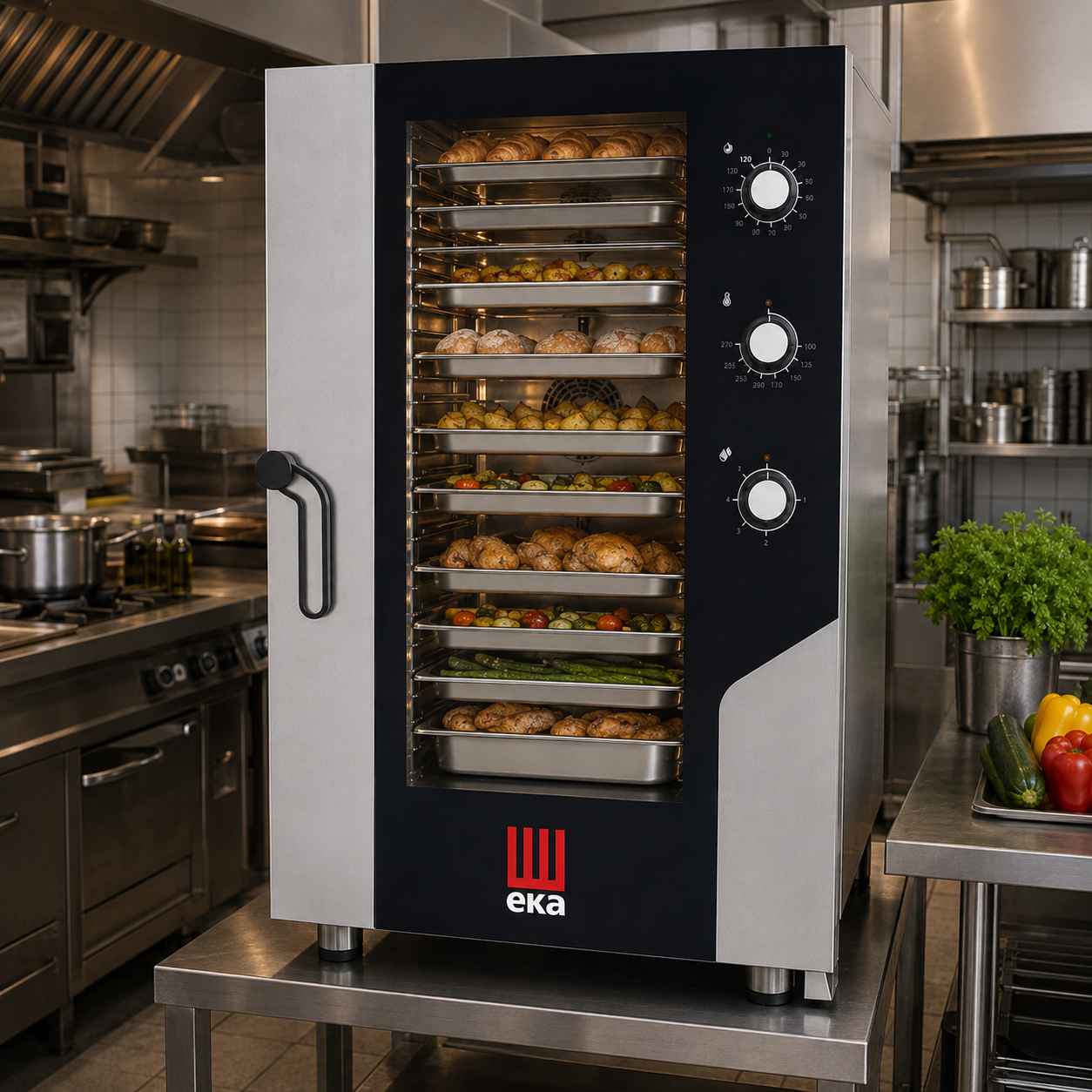

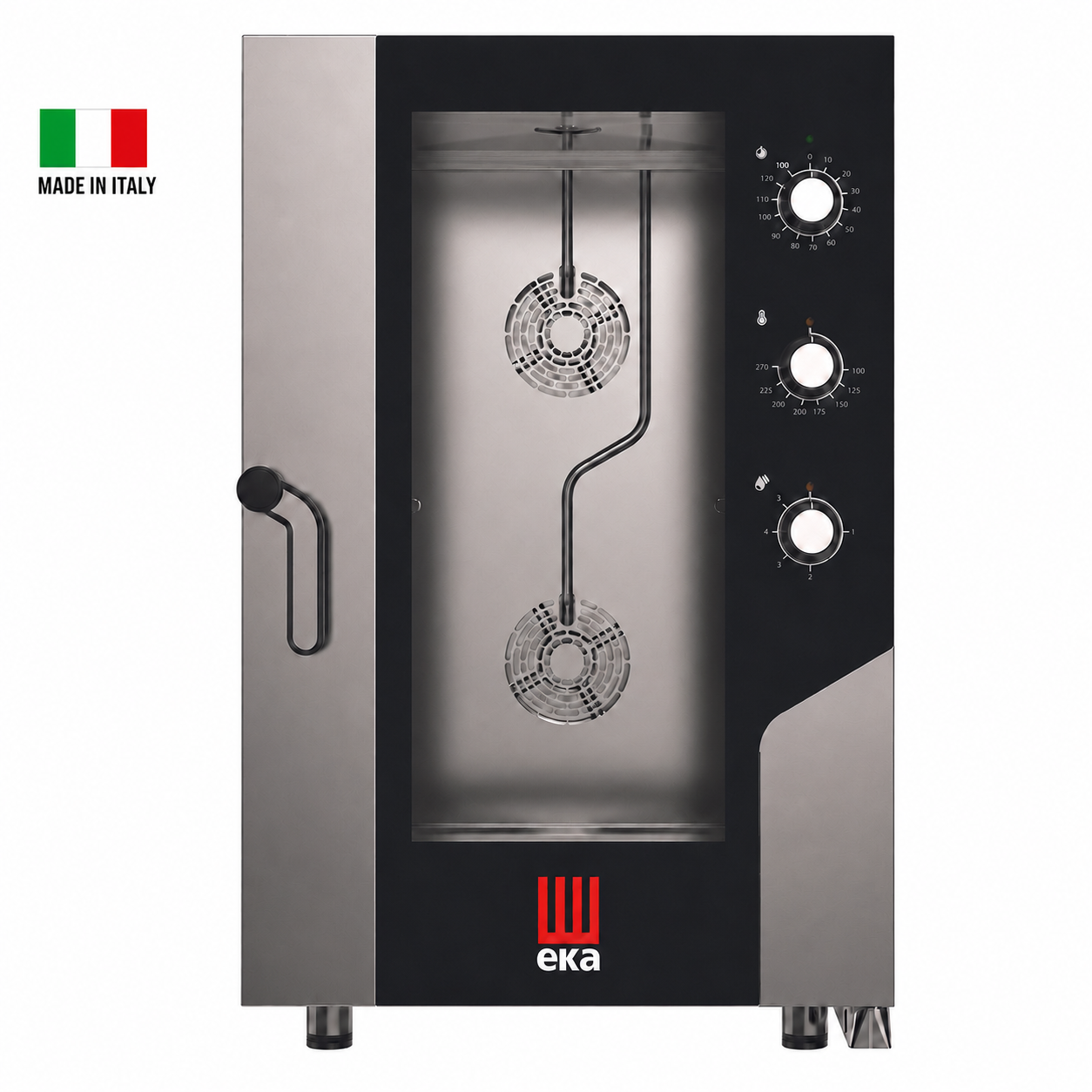

EKA - MKF 1111 S - Electric combi oven 11 trays 1/1 GN with electromechanic panel

Dimensional features

Dimensions (WxDxH mm) 730 x 855 x 1130

Weight (kg) 113,8

Distance between rack rails (mm) 68

Electrical features

Power supply (kW) 15,4

Frequency (Hz) 50 (60 on demand)

Voltage (V) AC 380/400 3N

N° motors 2 bidirectional

Protection against water IPX4

Functional features

Power Electricity

Capacity 11 trays/grids 1/1 GN

Type of cooking Ventilated

Steam Direct steam controlled by knob (5 levels)

Cooking chamber AISI 304 stainless steel

Temperature 100 - 270 °C

Temperature control Thermostat

Control panel Electromechanic - right side

Door: Right side opening | Ventilated | Inspectionable glass

Modularity Yes

Feet Adjustable

Optionals

Condensation hood MKKC 711 S

Kit for overlapping ovens MKS 11

Tables MKTS 11 | MKT 11 D

Other accessories Available in the dedicated section

Equipment

Cardboard box dimensions with pallet (WxDxH mm) 788 x 905 x 1276 mm

Lateral supports 1 right + 1 left

Cable Three-phase+neutral [5G 4]-L=1600 mm

Manual washing predisposition

Condensate collection bowl, with the drain on the door

Hinge with door locking for openings adjusted at 60°, 90°, 120°, 180°

Plus

Available on request at the order:

• Voltage (V): AC 220/230 3 PH
• Left side opening door

Adjustable door hinges
