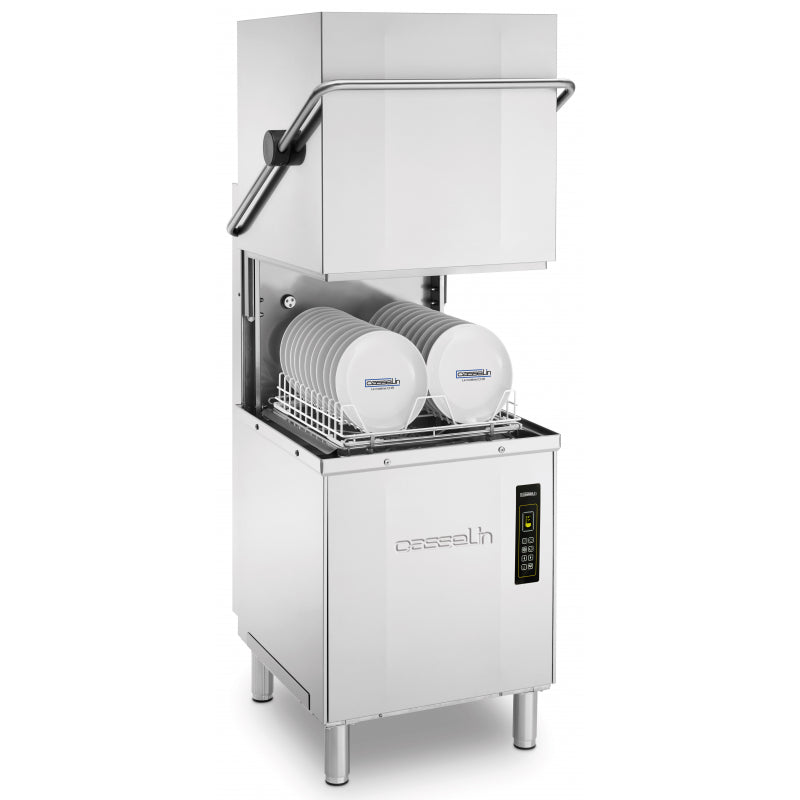

Hooded dishwasher with drain pump - CLVACPV

Specifications

SKU: CLVACPV

Chassis and body: AISI 304 stainless steel

Double walled door

Tank and boiler heating element: incoloy 800

Supplied: 2 baskets 500 x 500 mm (22 plates diam 24/basket)

Tank heating element: 3000 W

Boiler heating element: 6100 W

Boiler holding device

Electronic control

boiler thermal insulation device

Cleaning products batcher

Rinsing products batcher

Cycle times: 50/120/180 secondes

Production: 1320/660/440 basket per hour

Tank capacity: 46 liters

Consumption: 3 liters rinsing water

Stainless steel surface filters in the tank

Simple-phase predisposition

Power: 7,1 kW / 400 V

Dimensions: L 650 x D 755 x H 2155 mm

Weight: 124 Kg

Advice: supply water 50?60 ° C

> Predisposed for connection to accessories tables (service shelves, garbage tables, etc.)
