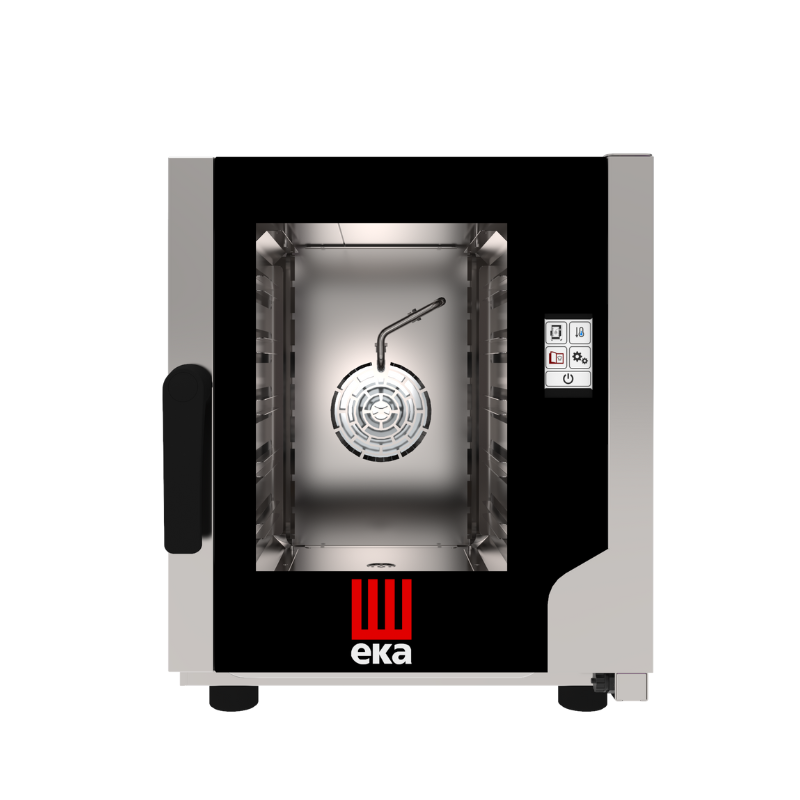

EKA - EKF 523 N T UD - Electric Combi Oven with Touch Screen

The latest 5 trays 2/3 GN with just 55cm width size, EKF523NTUD establishes a new benchmark level for cafes and convenience stores thanks to its compact size, a truly intelligent design along with technological solutions such as integrated LED door light, capacitive touch panel, customizable programs, black or white background theme change, steam injection, inner drain.

DIMENSIONAL FEATURES

Oven dimensions (WxDxH mm) 550 x 754 x 662 Oven weight (kg) 40 Distance between rack rails (mm) 80

ELECTRICAL FEATURES

Power supply (kW) 3,2 Frequency (Hz) 50/60 Voltage (Volt) AC 220/230 N° of motors 1 Bidirectional Protection against water IPX4

EQUIPMENT

Cardboard box dimensions with pallet (WxDxH mm) 599 x 784 x 735 Lateral supports 1 dx + 1 sx Cable Single-Phase [3G 1,5] - L=1600 mm Removable drip box One on the oven Manual washing set up Core probe predisposition Condensation hood predisposition USB port + WiFi

FUNCTIONAL FEATURES

Power Electricity Capacity N° 5 Trays / grids 2/3 GN (354x325 mm) Type of cooking Ventilated Steam Direct steam injection with manual % setup (from 10% to 100%) Cooking chamber AISI 304 Stainless Steel Temperature 30 - 270 °C Temperature control Digital probe Control panel Touch screen-right side N° of programs 100 Programmable Cooking Steps 5 Pre-heating temperature 180 °C Programmable oven start Available Pre-heating function Available Door Right side opening | Ventilated | Inspectionable glass

PLUS

Core probe (on request) Core probe support (on request)
