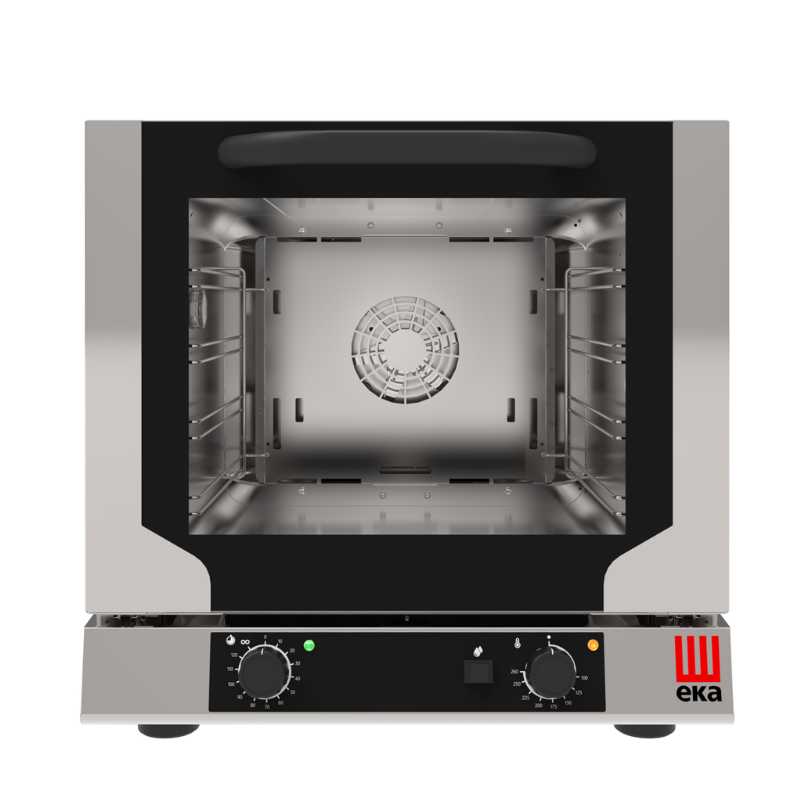

EKA - EKF 423 N U - Electric Convection Oven with Indirect Steam

DIMENSIONAL FEATURES

Oven dimensions (WxDxH mm) 590 x 709 x 589 Oven weight (kg) 36,4 Distance between rack rails (mm) 74

ELECTRICAL FEATURES

Power supply (kW) 3,1 Frequency (Hz) 50/60 Voltage (Volt) AC 220/230 N° of motors 1 Unidirectional Protection against water IPX4

EQUIPMENT

Cardboard box dimensions (WxDxH mm) 650 x 760 x 600 Aluminium tray 429x345 4 pcs (cod. KV7) Lateral supports 1 right + 1 left Cable Single-phase [3G 1,5]-L=1600 mm

FUNCTIONAL FEATURES

Power Electricity Capacity N° 4 trays/grids 429x345 mm Type of cooking Ventilated Steam Indirect with button Cooking chamber AISI 430 Stainless steel Temperature 100 - 260 °C Temperature control Thermostat Control panel Electromechanic – Lower side Door Tilt door | Ventilated | Inspectionable glass Modularity Available
