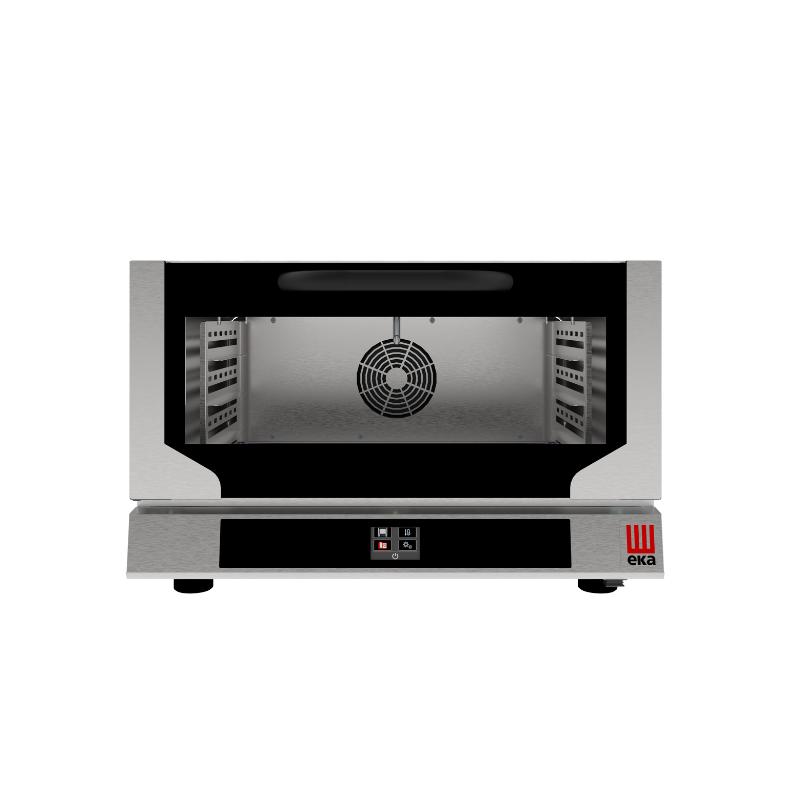

EKA - EKF 364 N T UD - Electric Convection Oven with Touch Screen and Direct Steam

Use: Pastry, Bakery

DIMENSIONAL FEATURES

Oven dimensions (WxDxH mm) 784 x 754 x 504 Oven weight (kg) 44 Distance between rack rails (mm) 73

ELECTRICAL FEATURES

Power supply (kW) 3,7 Frequency (Hz) 50/60 Voltage (Volt) AC 220/230 N° of motors 1 Bidirectional Protection against water IPX4

EQUIPMENT

Cardboard box dimensions (WxDxH mm) 805 x 830 x 670 Lateral supports 1 right + 1 left Cable Single-phase [3G 1,5] - L=1600 mm USB port

FUNCTIONAL FEATURES

Power Electricity Capacity N° 3 trays/grids 600 x 400 mm Type of cooking Ventilated Steam Direct steam is controlled by a touch screen and 10-step display [%] Cooking chamber AISI 304 Stainless steel Temperature 30 - 260 °C Temperature control Digital probe thermometer Control panel Touch-Lower side N° of programs 100 Programmable Cooking Steps 5 Pre-heating temperature 180 °C Pre-heating function Available Programmable oven start Available Door Tilt door | Ventilated | Inspectionable glass Modularity Available

PLUS

Core probe setup (on request) Core probe (on request) Core probe support (on request) Wi-Fi module (on request)
