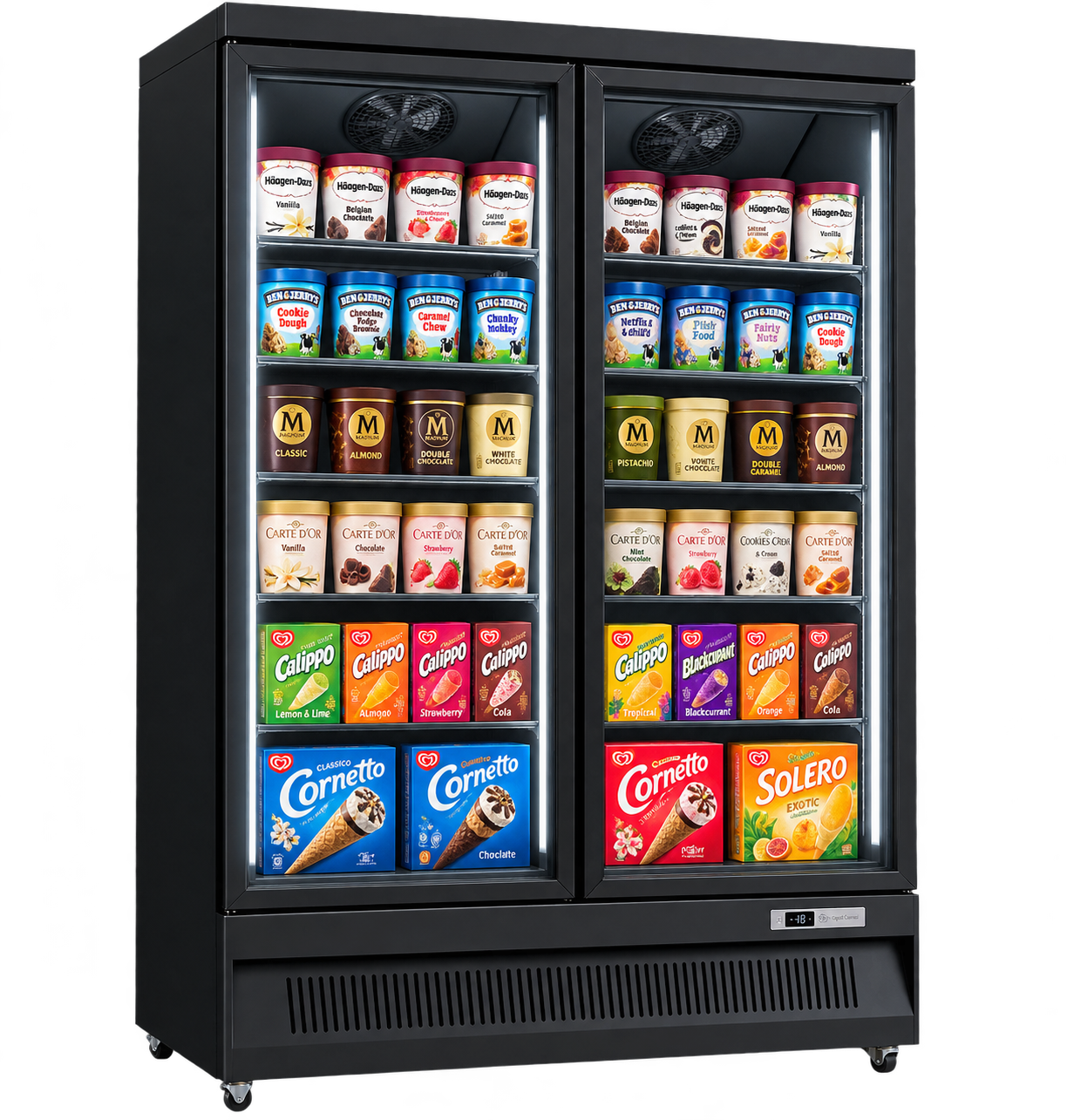

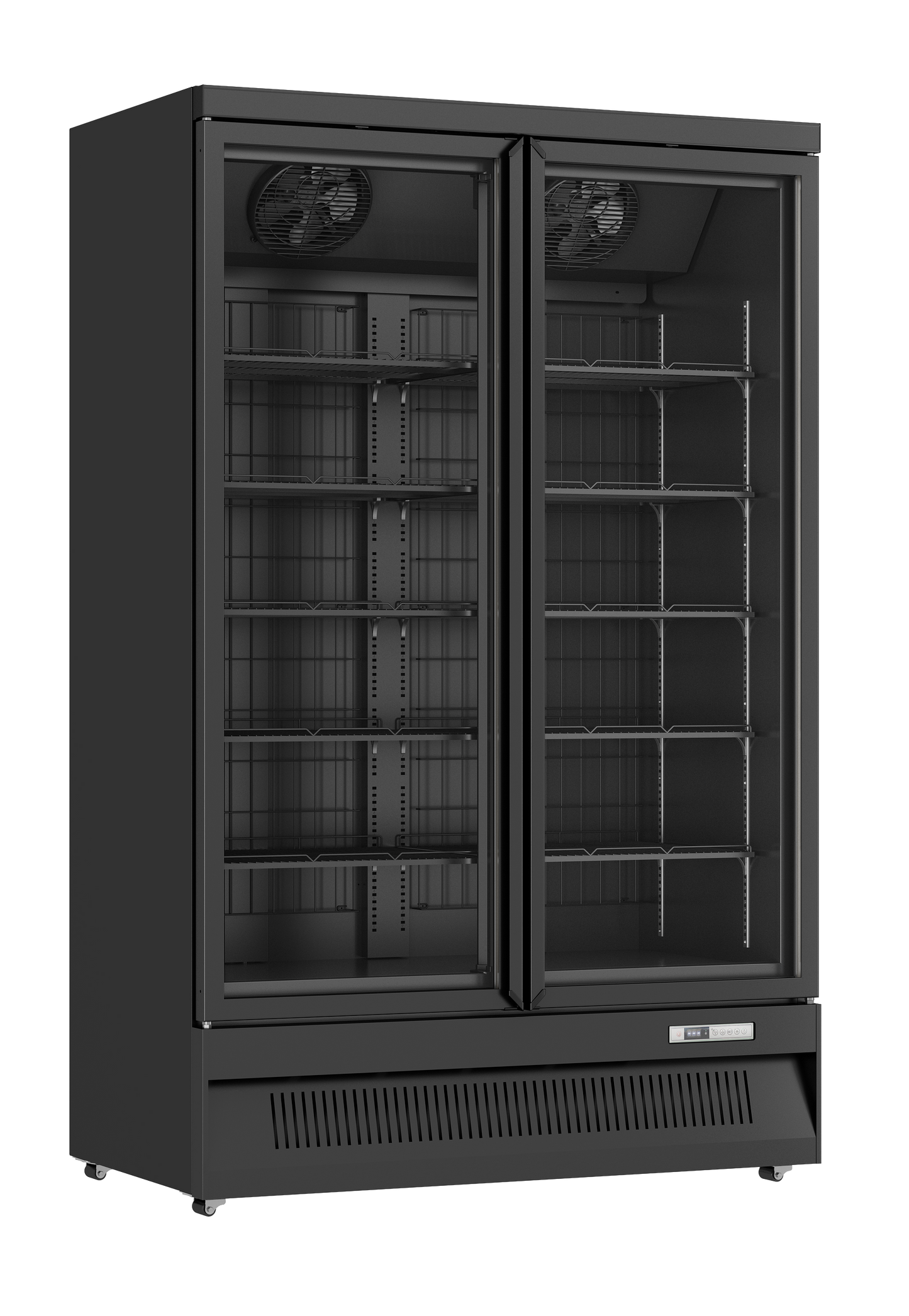

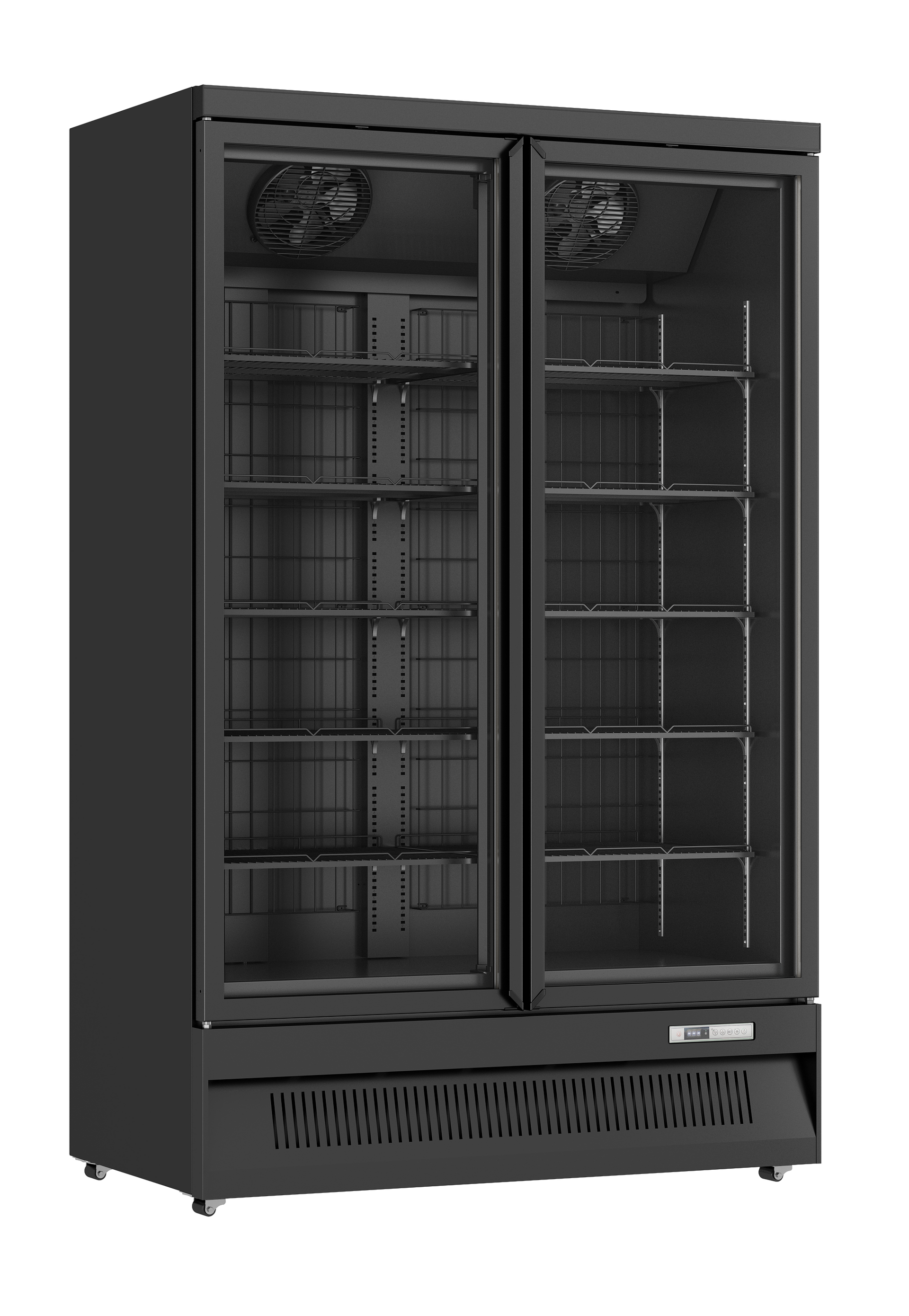

Double Glass Door Upright Display Freezer SKU AHE1253F

Dimensions & Capacity

Product Dimensions: W: 1253 × D: 760 × H: 2003 mm

Internal Dimensions: W: 1133 × D: 580 × H: 1538 mm

Gross Volume: 1006 L

Net Volume: 924 L

330ml Can Capacity: 1,512 cans

550ml Bottle Capacity: 756 bottles

Shelves: 10 black metal shelves / 16mm wire spacing

Shelf Loading Capacity: 37.52 kg per shelf

Display Area: 1.39 m²

Electrical & General

Climatic Class: 3

Rated Voltage / Frequency: 220V / 50Hz

Power Plug / Cord Length: UK Plug / 2m

Certifications: CB / CE / ERP / RoHS / REACH

Door & Cabinet

Number of Doors / Opening Style: 2 / Rotating

Door Glass: 25mm triple-layer glass / 4mm + 4mm + 3mm / D-tempered / Electrical heater

Door Opening Direction: Side to side

Automatic Door Closing: Yes

Door Stop: No

Front Grill: Vertical bar hole type / Metal / Black / Painted

Cabinet Interior & Exterior: Steel / Black / Pre-coated

Lighting & Display

Price Bar: 38mm high without cover / Black

Refrigeration & Cooling

Refrigerant: R290 / 80g × 2

Temperature Range: -18°C to -22°C

Cooling Method: Frost Free

Condenser Fans: 2 normal fans / 29W each / 1300 RPM

Evaporators: 2 aluminium evaporators

Evaporator Fans: 2 normal fans / 29W each / 1300 RPM

Cooling Switch: Yes

Defrost Water Treatment: Self evaporation

Compressor: Normal compressor

Noise Level: 62 dB

Controls & Energy

Controller Position: Front grill

Energy Standard: EU 2019/2018 / EU 2019/2024

Energy Class: D

Daily Energy Consumption: 17.85 kWh / 24h

Input Power: 1205W

Rated Current: 6.9A

Packaging & Shipping

Package Dimensions: 1295 × 775 × 2090 mm

Net Weight: 218 kg

Gross Weight: 230 kg

Mobility

Castors: 4 × 1-inch castors / 40mm height
