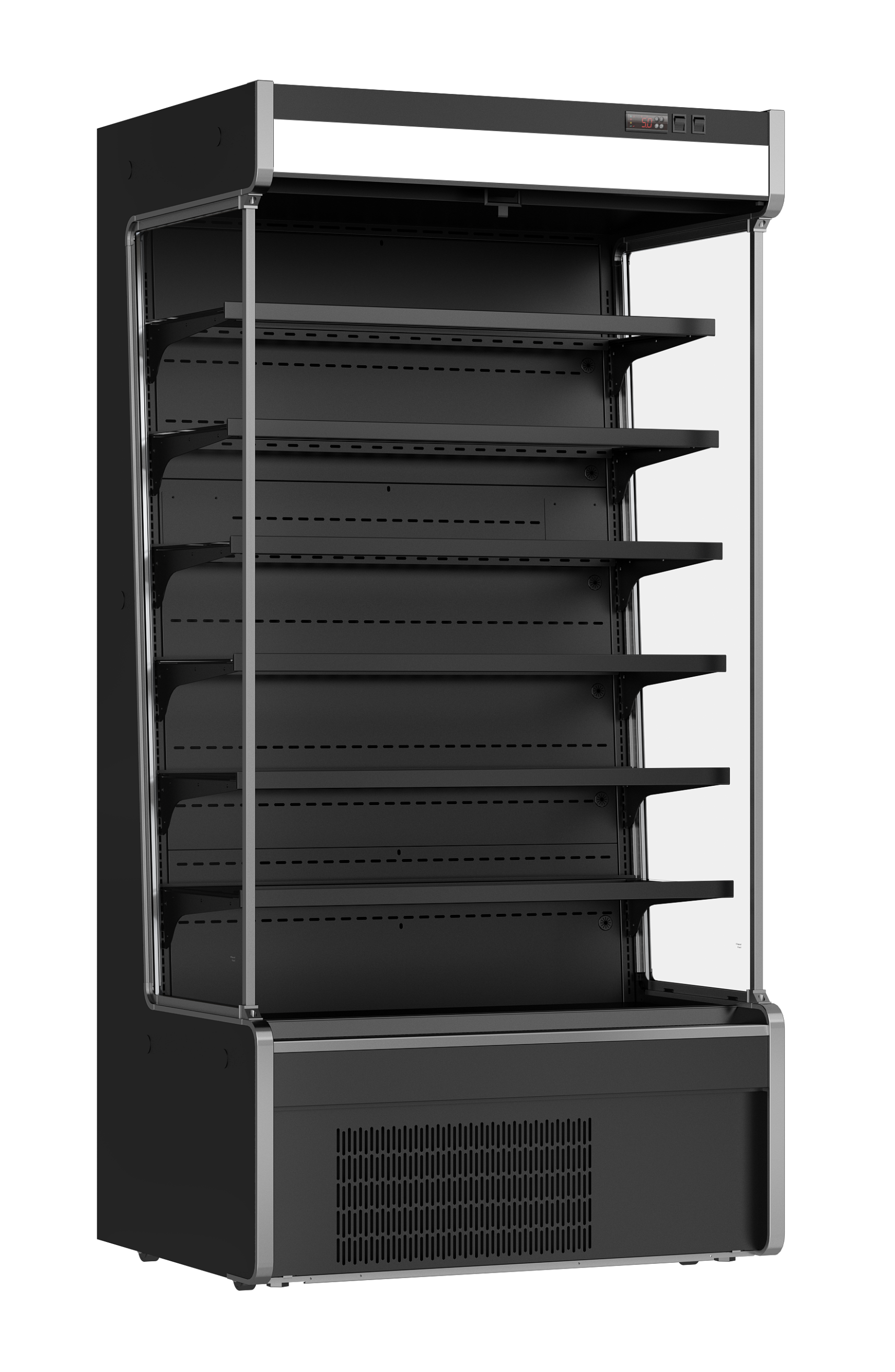

AHE Open Front Multideck AHE-IN91V3

Model Information

Model: AHE-IN91V3

Dimensions and Capacity

Product Dimensions (W × D × H): 975 × 740 × 1980 mm, including end walls

Internal Dimensions (W × D × H): 915 × 385 × 1290 mm

Net Volume: 466 L

Shelves: 5 metal shelves and 1 bottom cover

Shelf Loading Capacity: 49 kg per shelf

Operating Environment

Protection Against Electric Shock: Class I

Climatic Class: 3

Environmental Temperature / Humidity: 25°C / 60% RH

Maximum Altitude: ≤1500 m

Rated Voltage / Frequency: 220 V / 50 Hz

Power Plug / Cord Length: UK plug / 2 m

Certifications: CB, CE, ERP, RoHS and REACH

Night Curtain: Transparent extruded PET film

Internal Construction

Base Shelf: 0.7 mm galvanised steel, painted black

Frame: 2.0 mm galvanised steel, painted black

Display and Lighting

Display Area: 2.34 m²

Price Bar: 38 mm high, black, without cover

Refrigeration System

Refrigerant / Charge: R290 / 215 g

Temperature Range: −1 to +7°C

Cooling System: Frost-free

Condenser: 1 metal wire-and-tube condenser

Condenser Fans: 2 standard fans, 15 W each, 1300 RPM

Defrost Water Disposal: Self-evaporation

Electrical and Energy Details

Energy Standards: EU 2019/2018 and EU 2019/2024

Energy Class: D

Daily Energy Consumption: 16.5 kWh per 24 hours

Input Power: 850 W

Rated Current: 4 A

Defrost Type: Compressor stops during defrost

Packaging and Logistics

Package Dimensions (W × D × H): 1015 × 770 × 2080 mm

Net Weight: 209 kg

Gross Weight: 217 kg

Feet / Castors: Feet or four 2-inch castors, 74 mm high
