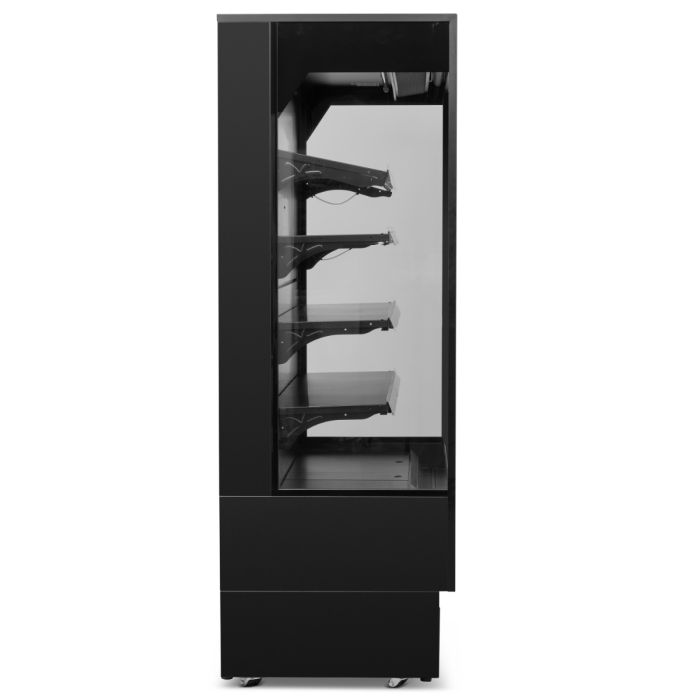

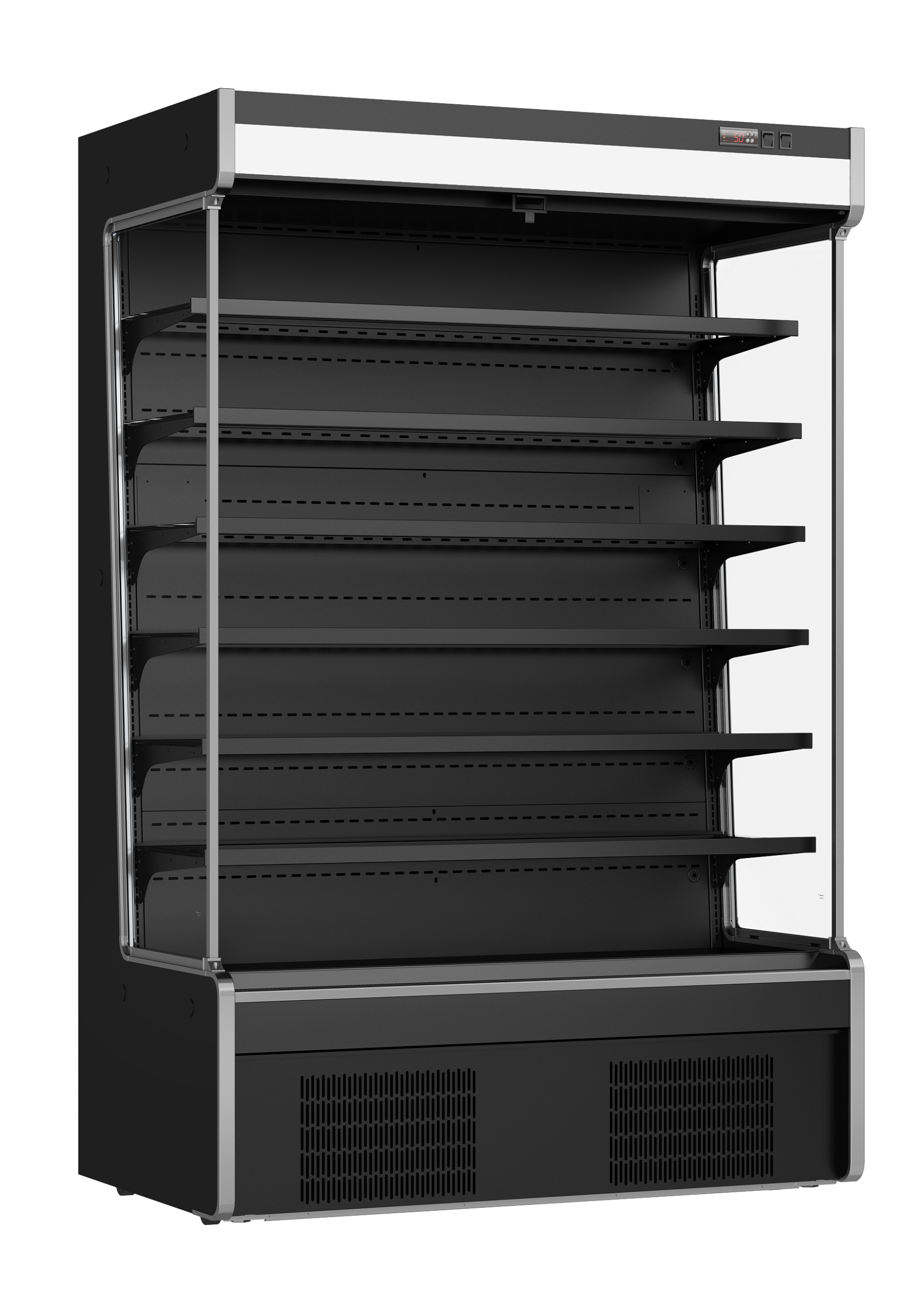

AHE Open Front Multideck 1.2m AHE-IN122V3

Model Information

Model: AHE-IN122V3

Dimensions and Capacity

Product Dimensions (W × D × H): 1280 × 740 × 1980 mm, including end walls

Internal Dimensions (W × D × H): 1220 × 385 × 1290 mm

Net Volume: 622 L

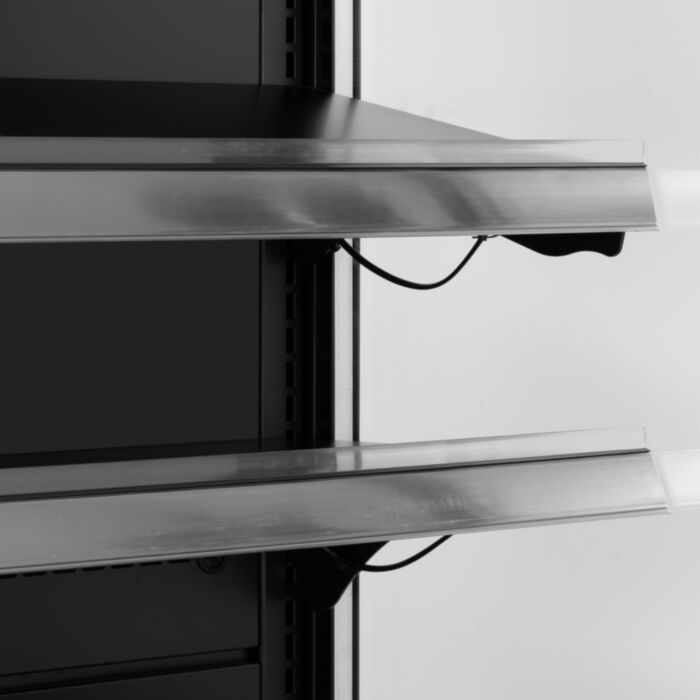

Shelves: 5 metal shelves and 1 bottom cover

Shelf Loading Capacity: 49.5 kg per shelf

Operating Environment

Protection Against Electric Shock: Class I

Climatic Class: 3

Environmental Temperature / Humidity: 25°C / 60% RH

Rated Voltage / Frequency: 220 V / 50 Hz

Power Plug / Cord Length: UK plug / 2 m

Cabinet Construction

Canopy: Flat aluminium cover, painted black

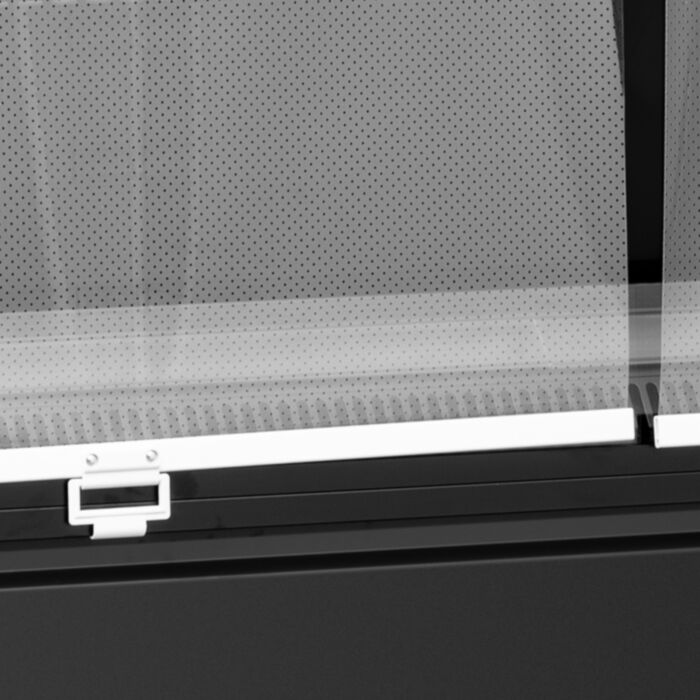

Night Curtain: Transparent extruded PET film

Internal Construction

Air Deflector: 0.5 mm galvanised steel, painted black

Base Shelf: 0.5 mm galvanised steel, painted black

Frame: 2.0 mm galvanised steel, painted black

Display and Lighting

Display Area: 2.78 m²

Price Bar: 38 mm high, black, without cover

Refrigeration System

Refrigerant / Charge: R290 / 2 × 210 g

Temperature Range: −1 to +7°C

Cooling System: Frost-free

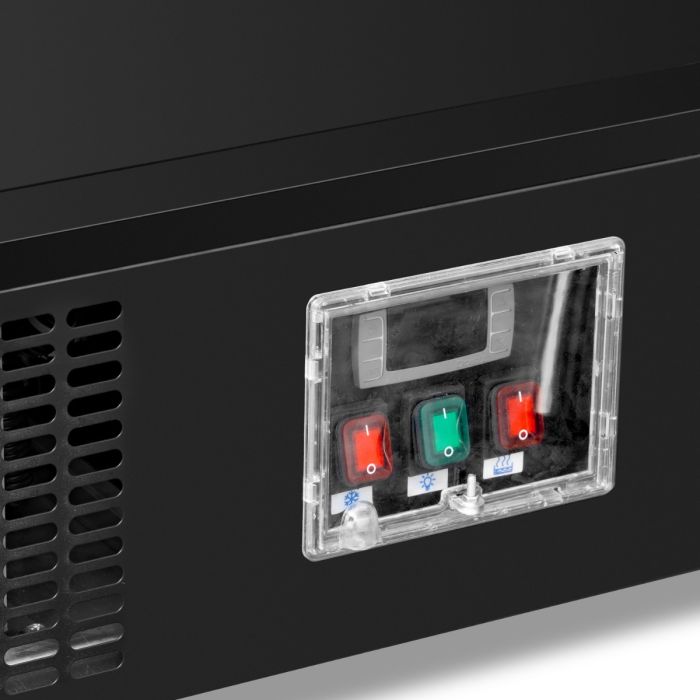

Cooling Switch: Yes

Defrost Water Disposal: Self-evaporation

Electrical and Energy Details

Energy Standards: EU 2019/2018 and EU 2019/2024

Energy Class: E

Daily Energy Consumption: 24 kWh per 24 hours

Input Power: 1300 W

Rated Current: 7.9 A

Defrost Type: Compressor stops during defrost

Packaging and Logistics

Package Dimensions (W × D × H): 1320 × 770 × 2080 mm

Net Weight: 273 kg

Gross Weight: 282 kg

Feet / Castors: Feet or six 2-inch castors, 74 mm high
