Katerbay - Kobar - K500 Max Wash-Rinse-Drain Dishwasher/Glasswasher

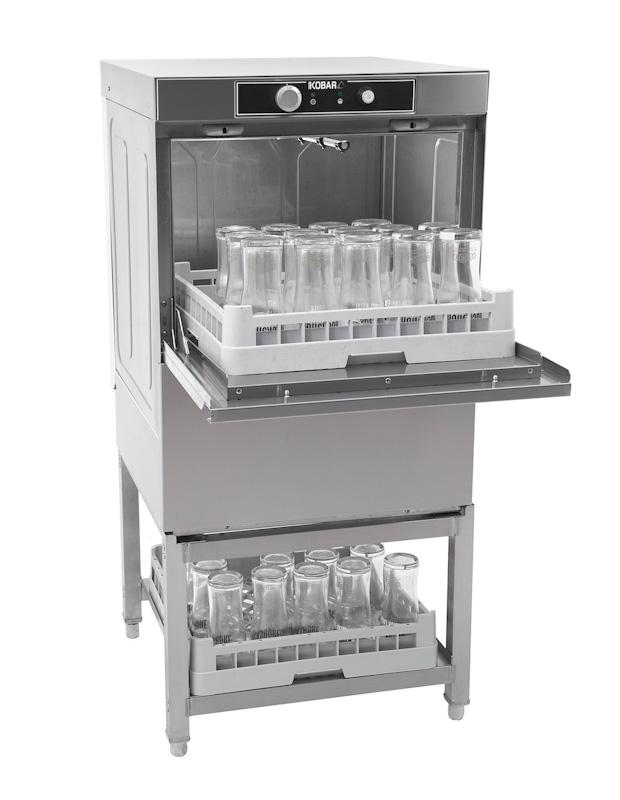

KOBAR K500MAX Commercial Dishwasher – 6.2 kW

The KOBAR K500MAX is a heavy-duty commercial dishwasher designed for busy restaurants, cafés, hotels, takeaways and professional catering kitchens. Manufactured using quality European components, it combines powerful washing, fast cycle options and simple automatic operation.

Choose between a rapid 90-second cycle for quick turnaround or a 3-minute cycle for heavily soiled crockery. With the capacity to process up to 30 baskets per hour, the K500MAX is an excellent choice for demanding commercial environments.

Key Features

• Choice of 90-second or 3-minute wash cycle
• Processes up to 30 baskets per hour
• Accommodates plates up to 320 mm high
• Powerful 3/4 HP wash pump
• Automatic washing and rinsing
• Built-in automatic drain pump
• Built-in detergent pump
• Integrated rinse-aid dispenser
• 85°C sanitising final rinse
• Thermostatically controlled wash and rinse temperatures
• Durable stainless-steel construction
• Quality European components
• Automatic filling and heating
• Non-return water valve
• Simple and user-friendly controls
• Four adjustable feet

Simple Operation

Turn the control knob to either the 90-second or 180-second setting. The dishwasher will automatically fill and heat. Once the basket has been loaded, press the Cycle Start button to begin the automatic wash and rinse cycle.

Automatic Drain Pump

To empty the dishwasher, remove the wash-tank bung, turn the control knob to the DRAIN position and press the Cycle Start button. The built-in drain pump will automatically empty the wash tank and stop after the programmed drainage time.

Replace the wash-tank bung after drainage is complete and before operating the dishwasher again.

Technical Specifications

Model: K500MAX

Dimensions (W × D × H): 595 × 600 × 835 mm

Electrical Power: 6.2 kW

Electrical Supply: Single-phase, 30 A

Wash Pump: 3/4 HP

Wash Cycles: 1.5 or 3 minutes

Maximum Output: Up to 30 baskets per hour

Basket Size: 500 × 500 mm

Maximum Plate Height: 320 mm

Final Rinse Temperature: 85°C

Water Connection: 3/4 inch

Minimum Water Pressure: 1.5 bar

Waste Connection: 25 mm

Drainage: Automatic drain pump

Weight: 62 kg

Included Accessories

• 1 × 500 × 500 mm plate basket
• 1 × 500 × 500 mm cup basket
• 1 × cutlery holder
• Water connection hose
• Drain pipe

Two stackable baskets are included, allowing one basket to be loaded with dirty crockery while the other is being washed.

Installation Requirements

This dishwasher requires a 230 V single-phase, 30 A electrical supply, a minimum incoming water pressure of 1.5 bar and a suitable waste connection. Electrical and plumbing installation should be completed by qualified professionals.
