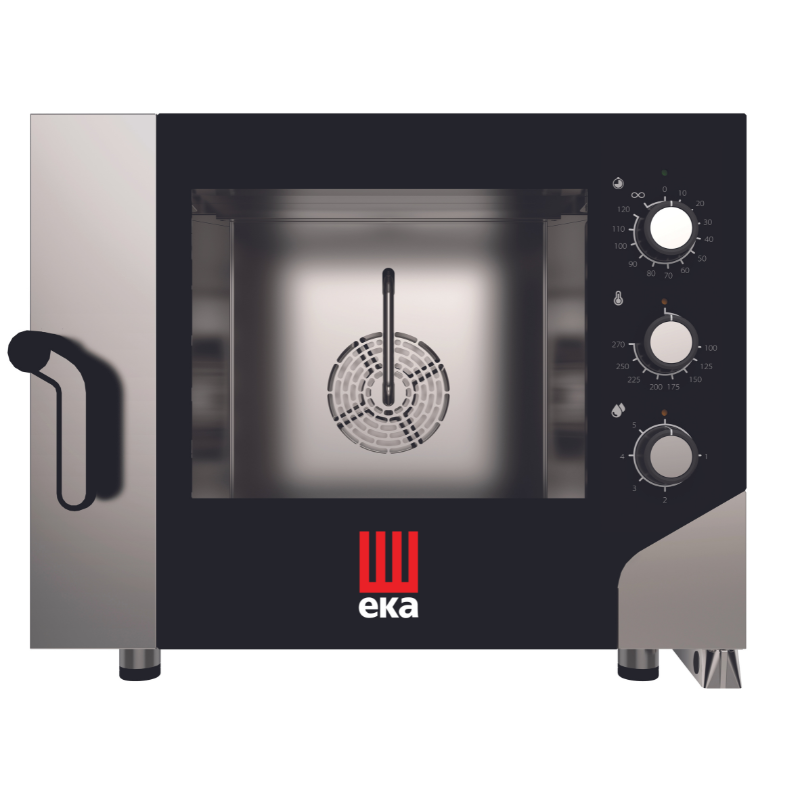

EKA - MKF 464 S - Electric combi oven 4 trays 600 x 400 mm with electromechanic panel

Dimensional features

Dimensions (WxDxH mm) 850 x 1044 x 700

Weight (kg) 92,4

Distance between rack rails (mm) 80

Electrical features

Power supply (kW) 7,8

Frequency (Hz) 50 (60 on demand)

Voltage (V) AC 380/400 3N

N° motors 1 bidirectional

Protection against water IPX4

Functional features

Power Electricity

Capacity 4 trays/grids 600 x 400 mm

Type of cooking Ventilated

Steam Direct steam controlled by knob (5 levels)

Cooking chamber AISI 304 stainless steel

Temperature 100 - 270 °C

Temperature control Thermostat

Control panel Electromechanic - right side

Door: Right side opening | Ventilated | Inspectionable glass

Modularity Yes

Feet Adjustable

Optionals

Condensation hood MKKC 4 S

Kit for overlapping ovens MKS 64 | MKSST 464

Tables MKTS 64 | MKT 64 D

Proofer MKL 1064 S

Other accessories Available in the dedicated section

Equipment

Cardboard box dimensions with pallet (WxDxH mm) 910 x 1090 x 865 mm

Lateral supports 1 right + 1 left

Cable Two-phase+neutral [5G 2,5]-L=1600 mm

Manual washing predisposition

Condensate collection bowl, with the drain on the door

Hinge with door locking for openings adjusted at 60°, 90°, 120°, 180°

Plus

Available on request at the order:

• Voltage (V): AC 220/230 3 PH
• Voltage (V): AC 220/230
• Left side opening door

Adjustable door hinges
