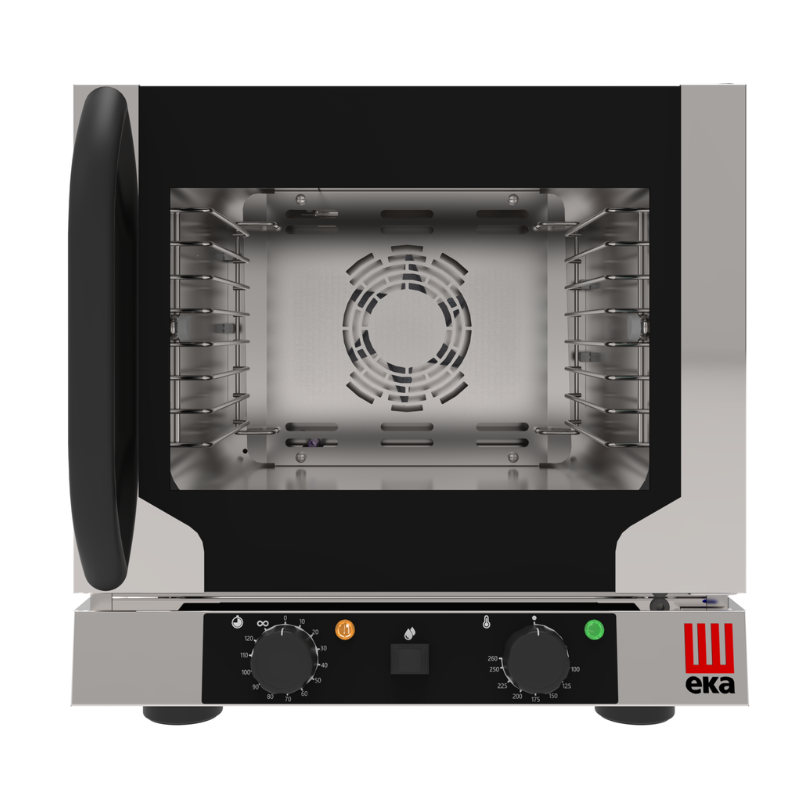

EKA - EKF 412 N AL U - Electric Convection Oven with Indirect Steam

Use: Pastry, Gastronomy

DIMENSIONAL FEATURES

Oven dimensions (WxDxH mm) 463 x 512 x 461 Oven weight (kg) 21,8 Distance between rack rails (mm) 25

ELECTRICAL FEATURES

Power supply (kW) 2,6 Frequency (Hz) 50/60 Voltage (Volt) AC 220/230 N° of motors 1 Unidirectional Protection against water IPX4

EQUIPMENT

Cardboard box dimensions (WxDxH mm) 545 x 620 x 468 Aluminium tray 1/2 GN 2 pcs (cod. KV4) Horizontal chromed grid 1/2 GN 2 pcs (cod. EKG4) Lateral supports 1 right + 1 left Cable Single-phase [3G 1,5] - L=1600 mm

FUNCTIONAL FEATURES

Power Electricity Capacity N° 4 trays/grids 1/2 GN Type of cooking Ventilated Steam Indirect with button Cooking chamber AISI 430 Stainless steel Temperature 100 - 260 °C Temperature control Thermostat Control panel Electromechanic – Lower side Door Right side opening door | Ventilated | Inspectionable glass Modularity Available
